Keysight (Agilent) N2819A Differential Probe with AutoProbe, 10:1,
800 MHz

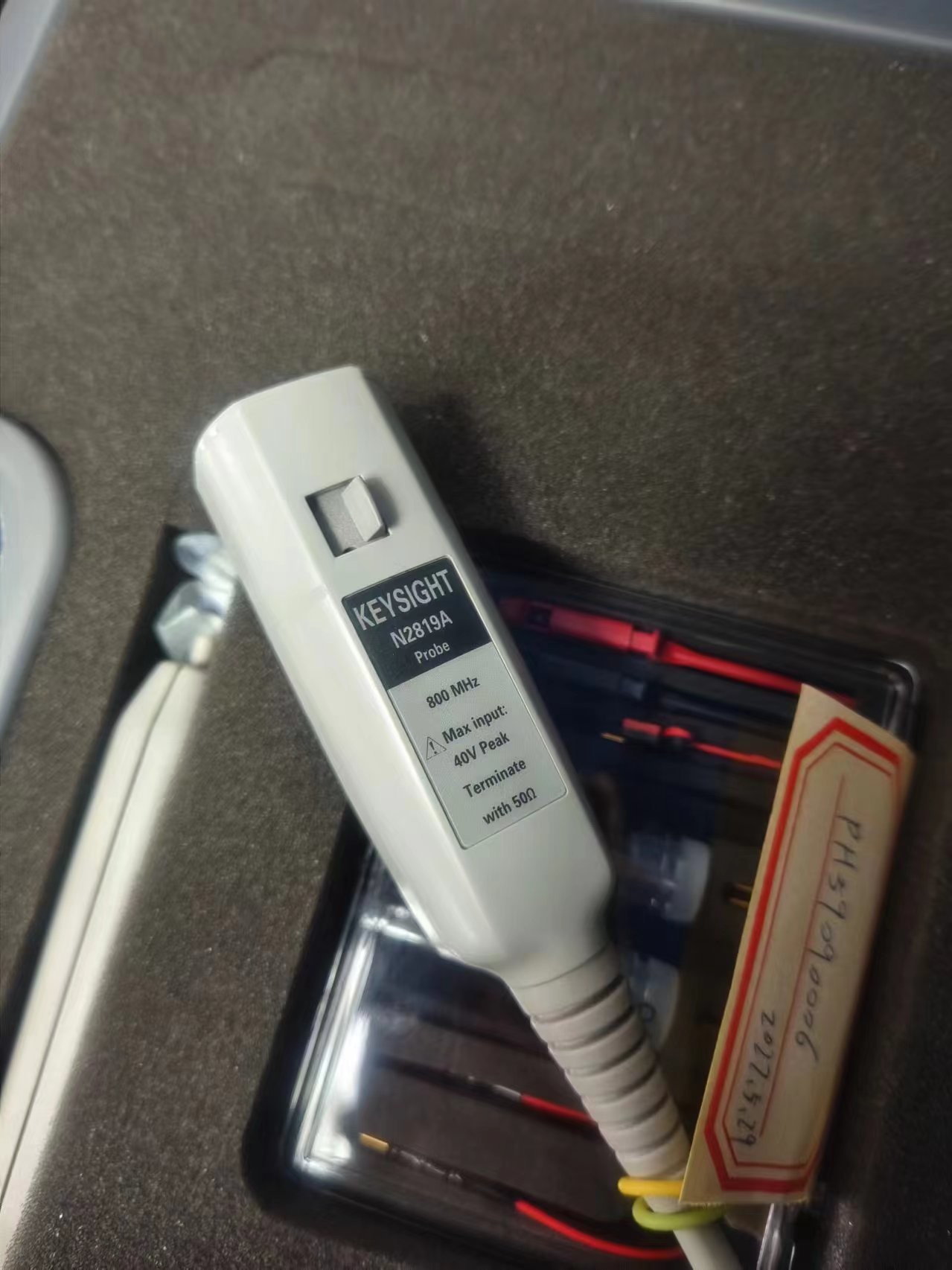

Description of N2819A Differential Probe with AutoProbe
The N2819A differential probe provides superior high-speed
differential signal measurements required for today’s high-speed
power measurements, vehicle bus measurements and high-speed digital
system designs. The N2819A differential probes offer 10:1
attenuation setting, allowing them to be used for a broad range of
applications. The probe comes with a variety of probe tip
accessories for use with large and small components in tight
places. The probe also comes with a DC blocking capacitor to block
out unwanted DC components of the input signal.
The differential probes have an input resistance of 200 kΩ and low
input capacitance of 1 pF to minimize circuit loading. The N2819A
probe is compatible with select InfiniiVision and Infiniium
oscilloscope with 50 Ω AutoProbe interface input. The probe is
powered directly by the InfiniiVision and Infiniium AutoProbe
interface. For use with non-AutoProbe input oscilloscope, use the
N2793A.
Specifications of N2819A Differential Probe with AutoProbe
- Wide dynamic range for various applications: ±15V differential,
±30V common mode
- High input resistance and low input capacitance for low probe
loading: 200 kΩ//1pF between inputs
- Direct connection to AutoProbe interface (no power supply required)
- Ideal for high-speed power measurements, digital differential
buses, and vehicle serial buses (CAN, LIN, FlexRay)

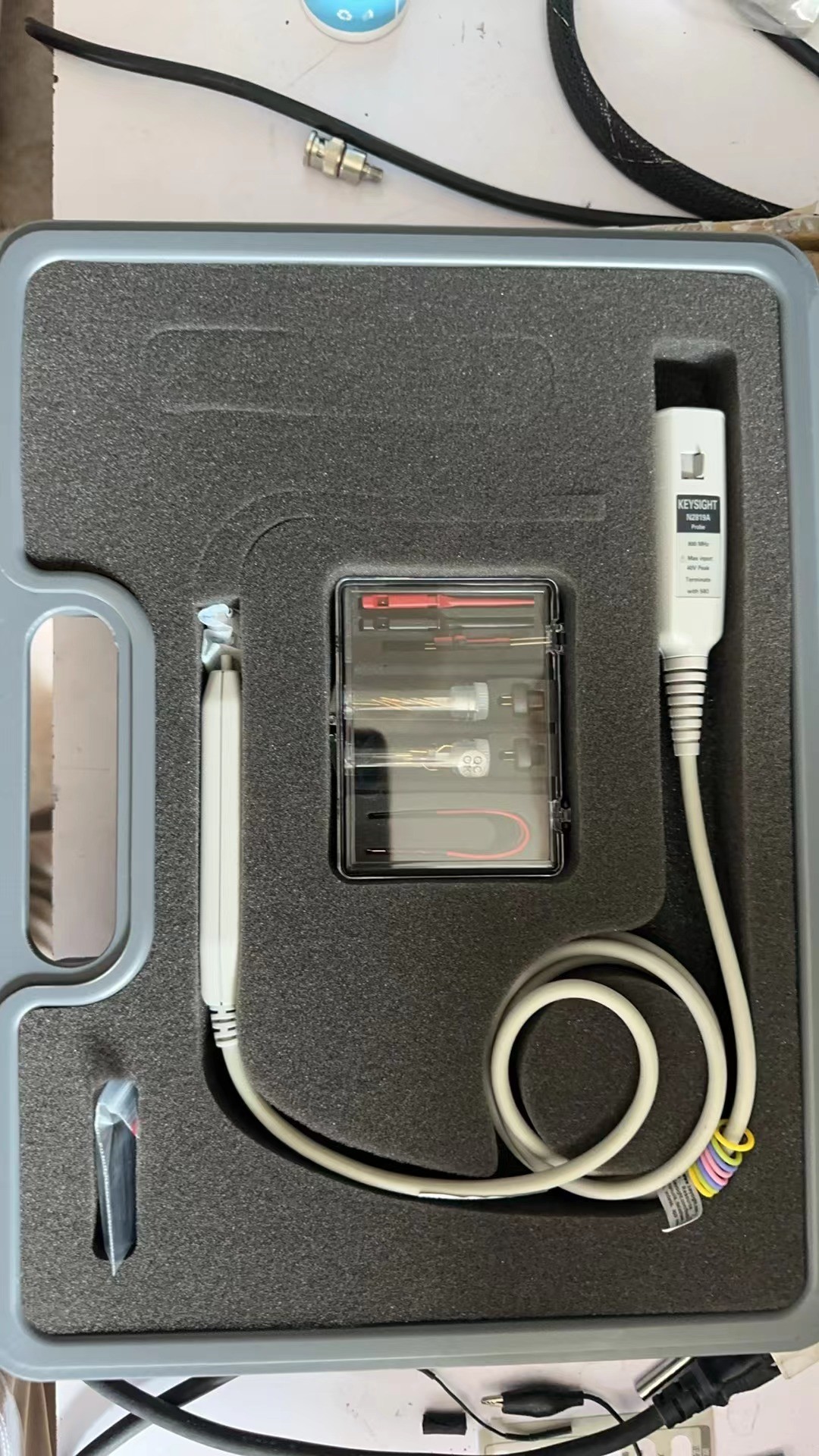

Standard accessories of N2819A
– 2 pincer clips (black and red)
– 2 micro IC clips (black and red)
– 2 extension leads, 0.8 mm J-P, 5 cm (black and red)
– 2 extension leads, 0.8 mm J-P, 10 cm (black and red)
– 2 DC blocking capacitors (30 kHz - 1 GHz, 100V max)
– 2 variable pitch spacing adapters
– 6 single signal pins, 0.8 mm
– 1 screw driver for offset adjustment
