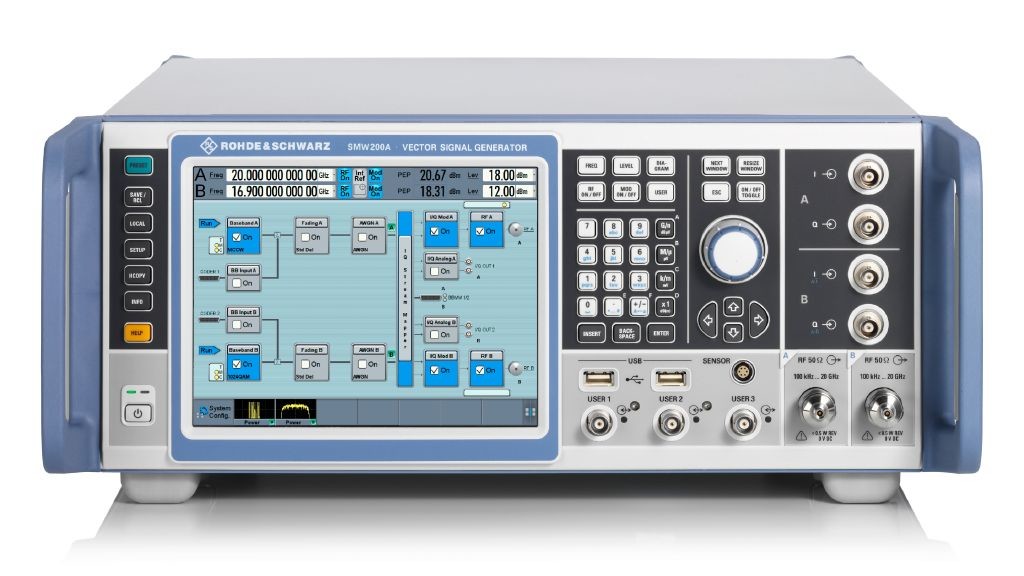

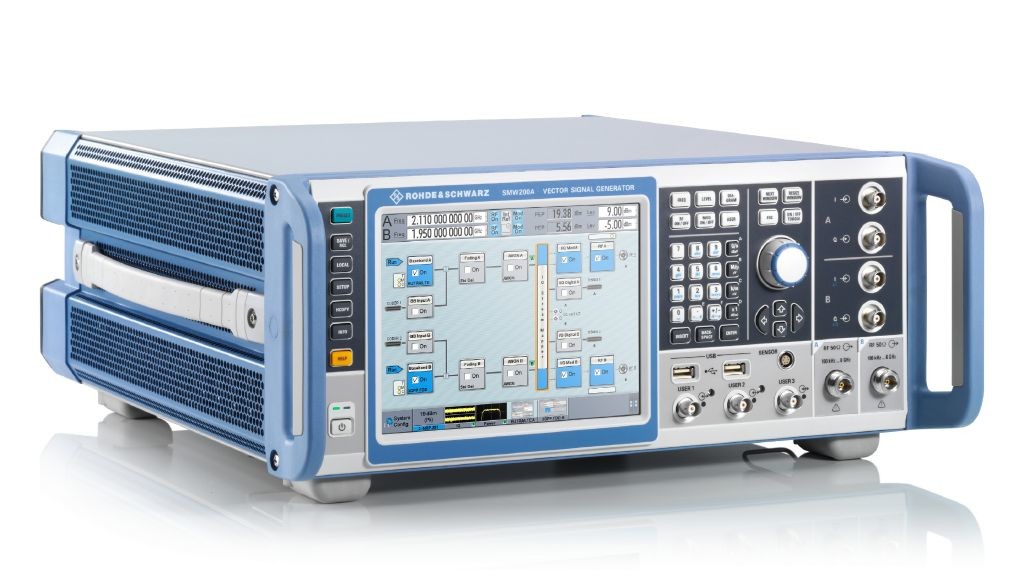

R&S Rohde Schwarz Signal Generator SMW200A up to 67 GHz
Description of R&S Rohde Schwarz Signal Generator SMW200A
Performance and functionality requirements vary depending on test
setup and application. The R&S®SMW200A is unrivaled in
mastering these varied requirements and sets new standards for
signal generators. When developing and verifying any type of DUT,
including components, modules and complete base stations – the
R&S®SMW200A easily generates the appropriate test signals with
top performance. The R&S®SMW200A has a flexible modular design
that can be equipped with exactly options that applications
require. Any configuration is possible, from a classic single-path
vector signal generator to a multichannel MIMO receiver tester.
The R&SeSMW200A covers the frequency range up to 67 GHz as a
single-path instrument and up to 44GHz as a dual-path instrument.
lt can also be equipped with a maximum of two internal
basebandmodules and four fading simulator modules, This concept
vields two ful-featured vector signalgenerators in a single unit,
enabling easy generation of complex signal scenarios.
Key features of Schwarz Signal Generator SMW200A
- Frequency range up to 67 GHz (dual path: up to 44 GHz)
- Signal generation for all major digital communications standards
- 2 GHz modulation bandwidth
- Advanced GNSS and radar simulator
- Integrated fading with up to 800 MHz bandwidth and up to 8x8 MIMO
The R&SeSMW200A offers integrated channel emulation for up to
800 MHz of fading bandwidth.Fading profiles for all maior standards
are available as presets. With up to 64 fading channels, all
keyMlMO fading scenarios such as 2x2,3x3, 4x4,8x4, 4x8 and 8x8 can
be configured in a singleinstrument. Aggregation of up to eight
carriers is also supported and SGT100A signal generatormodules can
be connected to provide up to eight RF paths.
List of Options of SMW200A
| B10 | Baseband generator with real-time coder and ARB (64 MSamples) |
| B1003 | 100 kHz to 3 GHz |
| B1006 | 100 kHz to 6 GHz |
| B1007 | 100 kHz to 7.5 GHz |
| B1012 | 100 kHz to 12.75 GHz |
| B1020 | 100 kHz to 20 GHz |
| B1031 | 00 kHz to 31.8 GHz |
| B1040 | 100 kHz to 40 GHz |
| B1040N | 00 kHz to 40 GHz, I/Q modulation bandwidth and minimum pulse width
limited |
| B1044 | 100 kHz to 44 GHz |
| B1044N | 100 kHz to 44 GHz, I/Q modulation bandwidth and minimum pulse width
limited |
| B13T | Signal routing and baseband main module, two I/Q paths to RF |
| B13XT | B13XT-Wideband baseband main |
| B22 | Enhanced phase noise performance and FM/Phim modulator, frequency
option (R&S®SMW-B1xx/B2xx) and R&S®SMW-B13T/B13XT required,
retrofittable in factory only (hardware option) |
| B9 | 500MHz 256MS Wideband base |
| B9 | Wideband Baseband Generator with ARB |
| B90 | Phase coherence |
| K16 | Differential analog I/Q outputs |
| K16 - 2ND | Differential analog I/Q outputs |
| K19 | Digital Baseband Output for SMW Wideband Baseband |
| K40 | GSM/EDGE |
| K42 | 3GPP FDD, R&S®SMW-B9/B10 required (software license) |
| K46 | CDMA2000®, R&S®SMW-B9/B10 required (software license) |
| K47 | 1xEV-DO Rev.A, R&S®SMW-B9/B10 required (software license) |
| K511 | ARB memory extension to 512 MSamples |
| K515 | ARB memory ext 2Gs |
| K522 | Baseband extension to 160MHz RF bandwidth |
| K526 | 2GHz RF baseband extension |
| K54 | IEEE 802.11a/b/g/n |
| K541 | Digital Predistortion |
| K541 | M/AM, AM/PM Predistortion |
| K55 | EUTRA/LTE, R&S®SMW-B9/B10 required (software license) |
| K61 | K61-Multi carrier |
| K62 | Additional white Gaussian noise, R&S®SMW-B13/B13T/B13XT
required (software license) |
| K69 | EUTRA/LTE closed-loop BS test, HARQ feedback, timing adjustment
R&S®SMW-K55 required (software license) |
| K74 | MIMO fading and routing, R&S®SMW-B13T, 2 x R&S®SMW-B10 and
2 x R&S®SMW-B14 required (software license) |
| K83 | 3GPP FDD HSPA/HSPA+, enhanced BS/MS tests R&S®SMw-K42 required
(software license) |
| K84 | EUTRA/LTE Release 9 and enhanced features, R&S®SMW-K55 required
(software license) |
| K85 | EUTRA/LTE Release 10 (LTE Advanced), R&S®SMW-K55 required
(software license) |
| K86 | IEEE 802.11ac |
| R&S®SMW-B220 | 100 kHz to 20 Ghz |
| SMW-B10 | Baseband generator with realtime coder and ARB (64 Msample), 120
MHz RF bandwidth |
| SMW-B106 | 100 kHz to 6 GHz |
| SMW-B120 | 100 kHz to 20 GHz |
| SMW-B13T | Signal routing and baseband main module, two I/Q paths to RF |
| SMW-B140 | 100 kHz to 40 GHz |
| SMW-B206 | 100 kHz to 6 GHz |
| SMW-B220 | 100 kHz to 20 GHz |
| SMW-K115 | Cellular IOT |
| SMW-K525 | Baseband Extension to 1 GHz RF bandwidth |
| SMW-K527 | Baseband Extension to 2 GHz RF bandwidth |
| SMW-K55 | EUTRA/LTE |
