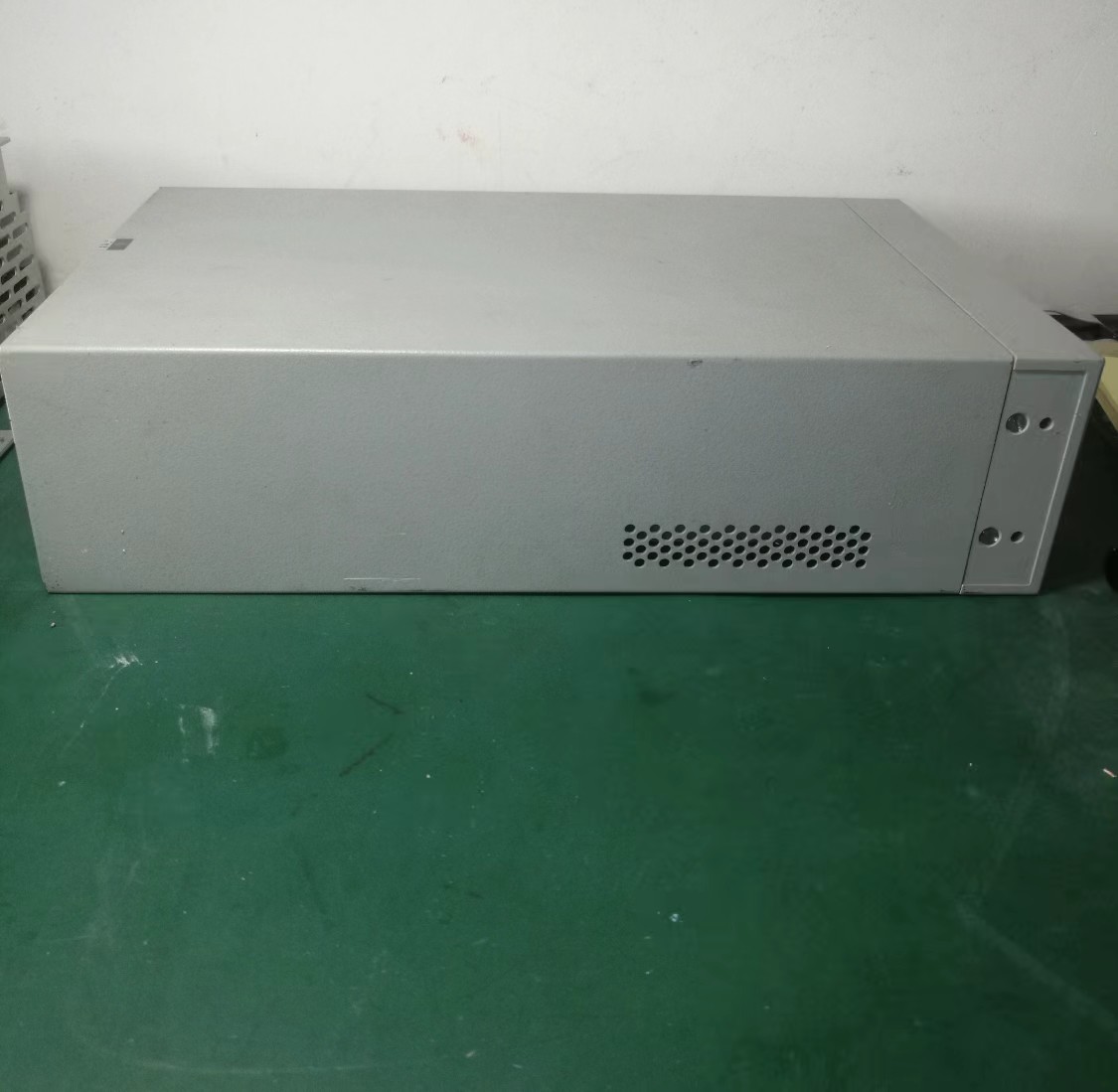

    Boonton 4530 4531 Single Channel RF Peak Power Meter tested in full working conditions

    Ask Lasest Price
    Brand Name : Boonton
    Model Number : 4530
    Certification : ISO:17025 Accredited Calibration
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : in stock
    • Product Details
    • Company Profile

    Boonton 4530 4531 Single Channel RF Peak Power Meter tested in full working conditions


    Boonton 4530 4531 Single Channel RF Peak Power Meter tested in full working conditions


    Description of Boonton 4530 4531


    The 4531 measures the precise peak and average power of today™s complex digitally-modulated carriers...and those of tomorrow as well.

    Modulation bandwidths up to 20 MHz are within the range of the 4530, which makes it the best choice for measuring CDMA, W-CDMA, CDMA2000, TDMA, GSM, GSM-EDGE, GPRS, OFDM, HDTV, and UMTS with the flexibility to accommodate new modulation schemes in the future.

    The 4530 displays periodic and pulse waveforms in graphical format, and a host of automatic measurements characterize the time and power profiles of the pulse. Powerful triggering, effective sampling rates up to 50 MSamples/sec. and programmable cursors give you instantaneous power.

    Features:

    • Range is 10 HZ - 110 MHz
    • Maximum Dynamic Range 90 dB
    • Minimum Log Display Resolution 0.001 dB
    • Power Reference 50 mW
    • Power Reference Accuracy 0.06 %
    Quick Specifications
    Sensor Inputs
    RF channels1 or 2
    RF frequency range10 MHz to 40 GHz*
    Peak pwr range-40 to +20 dBm*
    Modulated pwer range-60 to +20 dBm
    Video Bandwidth20 MHz*
    Acquisition and Measurement System
    Time resolution20 ms
    A/D Converter12 bit
    DSP32 bit floating point
    Trigger
    Ext Trig range, impedance+/-15V, +/-50V
    Min trig pulse width20 ns
    Max trig rate1.8 MHz
    Calibrator Source
    Internal Calibrator1 GHz, CW/Pulse -50 to +20 dBm
    * Sensor Dependent, Calibrator Dependent
    Pulse Mode Operation (Automatic)
    Pulse widthPulse rise-time
    Pulse fall-timePulse period
    Pulse repetition frequencyPulse duty cycle
    Pulse off-timePeak power
    Pulse on powerPulse overshoot (dB or %)
    Waveform Average powerTop level power (IEEE spec)
    Bottom level power (IEEE spec)
    Marker Measurements
    Markers (vertical cursors)
    Settable in time relative to the trigger position
    Markers independently
    Average, minimum, peak power at a single time offset
    Pair of Markers
    Average, minimum, peak power over the interval between markers, power ratio between markers
    Options
    4531Single Channel, GPIB, RS-232 10 kHz - 40 GHz
    4532Dual Channel, GPIB, RS-232 10 kHz - 40 GHz
