RIGOL DS70000 Series Digital Oscilloscope with Real‐Time Spectrum
Analysis to 5 GHz
Description of RIGOL DS70000 Series (DS70304 DS70504) Digital Oscilloscope 5 GHz,4 Channels
RIGOL DS70000 series digital oscilloscope adopts RIGOL's chipset
"Phoenix", delivering excellent performance with a maximum sample
rate of 20 GSa/s, 5 GHz bandwidth. RIGOL's brand new UltraVison III
technical platform guarantees the specifications to reach the
advanced level in the industry, with the capture rate up to
millions of waveforms per second, 2 Gpts memory depth, 8-16 bits
adjustable resolution, and 10,000 FFTs/s. In addition to the
improved hardware specifications, the DS70000 series digital
oscilloscope has a main 15.6-inch HD capacitive multi-touch screen
equipped with electronically controlled one-button screen
inclination for signal visualization, analysis, and results; a
secondary 3.5-inch small screen with a customized function and
shortcut menu display; and other user-friendly designs, bringing
users an extraordinary human-machine interface experience.
Features of RIGOL DS70000 Series (DS70304 DS70504) Digital Oscilloscope 5 GHz,4
Channels
• Analog channel bandwidth: Max. 5 GHz, 4 analog channels and 1 EXT
channel
• Vertical sensitivity range: 1 mV/div~10 V/div (1 MΩ), 1 mV/div~1
V/div (50 Ω)
• Max. memory depth: 2 Gpts
• Waveform capture rate >1,000,000 wfms/s
• Integrates 5 independent instruments into 1, including digital
oscilloscope, real-time spectrum analyzer (option), digital
voltmeter, 8-digit frequency counter and totalizer, and protocol
analyzer (option)
• Timebase range: 50 ps/div~1000 s/div • Up to 2,000,000 frames of
hardware real-time and ceaseless waveforms recording and playback
functions
• 7 GHz high-end active differential probe PVA8700 (option)
• Standard trigger functions: Edge trigger, Pulse trigger, Slope
trigger, Video trigger, Pattern trigger, Duration trigger, Timeout
trigger, Runt trigger, Window trigger, Delay trigger, Setup/ Hold
trigger, Nth Edge trigger, RS232, I2C, SPI, CAN, FlexRay, LIN, I2S,
and MIL-STD-1553
• A variety of serial decoding functions (option): RS232, I2C, SPI,
CAN, FlexRay, LIN, I2S, MILSTD-1553, and CAN-FD; supporting 4
decoding channels • Auto measurement of 41 waveform parameters;
full-memory hardware measurement function • Main 15.6'' HD capacitive multi-touch screen equipped with
electronically controlled one-button screen inclination for signal
visualization, analysis, and results; multi-window split screen
display
• Eye diagram and jitter analysis (option) • Unique UltraVision III
technical platform
• Multiple interfaces available: USB HOST&DEVICE, LAN(LXI),
HDMI, AUX OUT; Web Control supported
• Max. real-time sample rate: 20 GSa/s
• The photoelectric encoder operating knob prolongs its service
life, guaranteeing more than 100,000 times of pressing operation
and 1 million times of rotation operation, greatly improving its
service life
• Secondary 3.5-inch touch screen separates menus and functions
from signals and analysis with a customized function and shortcut
menu • Electronic label display of the model and main parameters of
the product, sustaining the display contents up to 20 years, and
capable to be updated when any option is upgraded
• Support online version upgrade
• A variety of math operations: A+B, A-B, A×B, A/B, FFT,
A&&B, A||B, A^B, !A, Intg, Diff, Lg, Ln, Exp, Sqrt, Abs,
AX+B, LowPass, HighPass, BandPass, BandStop, built-in enhanced FFT
analysis and peak search function

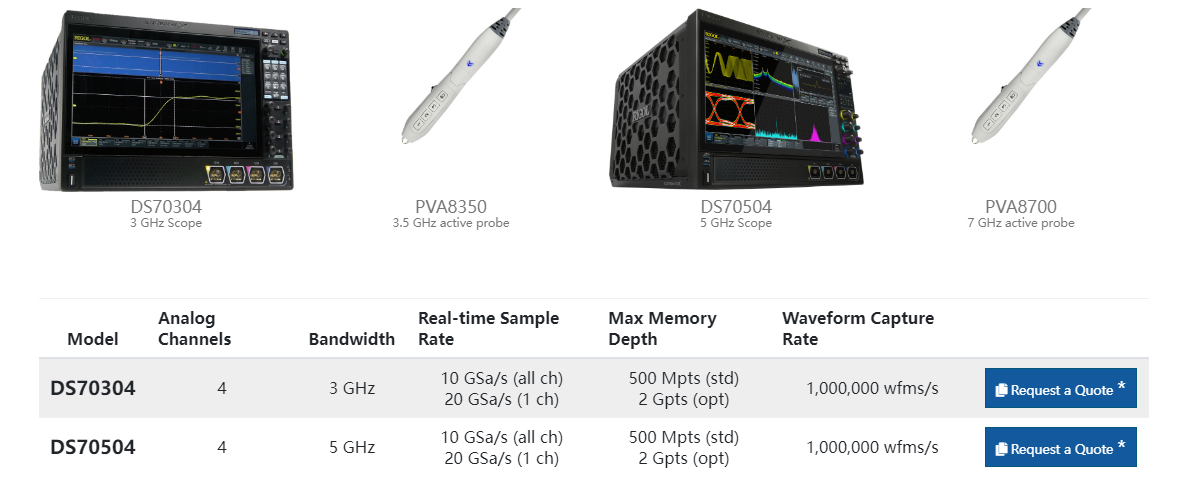

DS70000 Oscilloscopes deliver new levels of performance and
capability to address demanding design challenges (DS70304 DS70504)

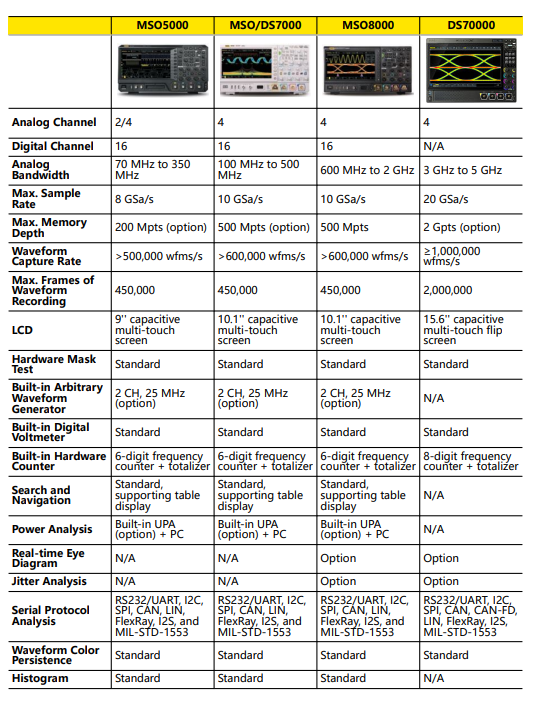

Overview of RIGOL's Medium and High-end Series Products (DS70304 DS70504)
Order information of RIGOL DS70000 (DS70304 DS70504)
Model
| DS70304 | 3 GHz, 20 GSa/s, 500 Mpts, 4CH High-End DS |
| DS70504 | 5 GHz, 20 GSa/s, 500 Mpts, 4CH High-End DS |
Standard Accessories
| — — | Power Cord Conforming to the Standard of the Destination Country |
| — — | USB Cable |
| RP3500A | 4 Passive HighZ Probes (500 MHz) |
Upgrade Option
| DS70000-RL-20 | 2 Gpts Memory Depth Upgrade Option |
Real-Time Spectrum Analysis (RTSA)
Pre-compliance Test Software
| DS70000-USBC | USB2.0 Pre-compliance Test |
| DS70000-USBC | 100Base-T Ethernet Pre-compliance Test |
Measurement Application Option
| DS70000-JITTA | Advanced Eye Diagram and Jitter Analysis (Option) |
Serial Protocol Analysis Option
| DS70000-EMBDA | Embedded Serial Bus Trigger and Analysis (RS232/UART, I2C, and SPI) |
| DS70000-AUTOA | Auto Serial Bus Trigger and Analysis (CAN, CAN-FD, LIN, FlexRay) |
| DS70000-AUDIOA | Audio Serial Bus Trigger and Analysis (I2S) |
| DS70000--AEROA | Aerospace Serial Bus Trigger and Analysis (MIL-STD-1553) |
