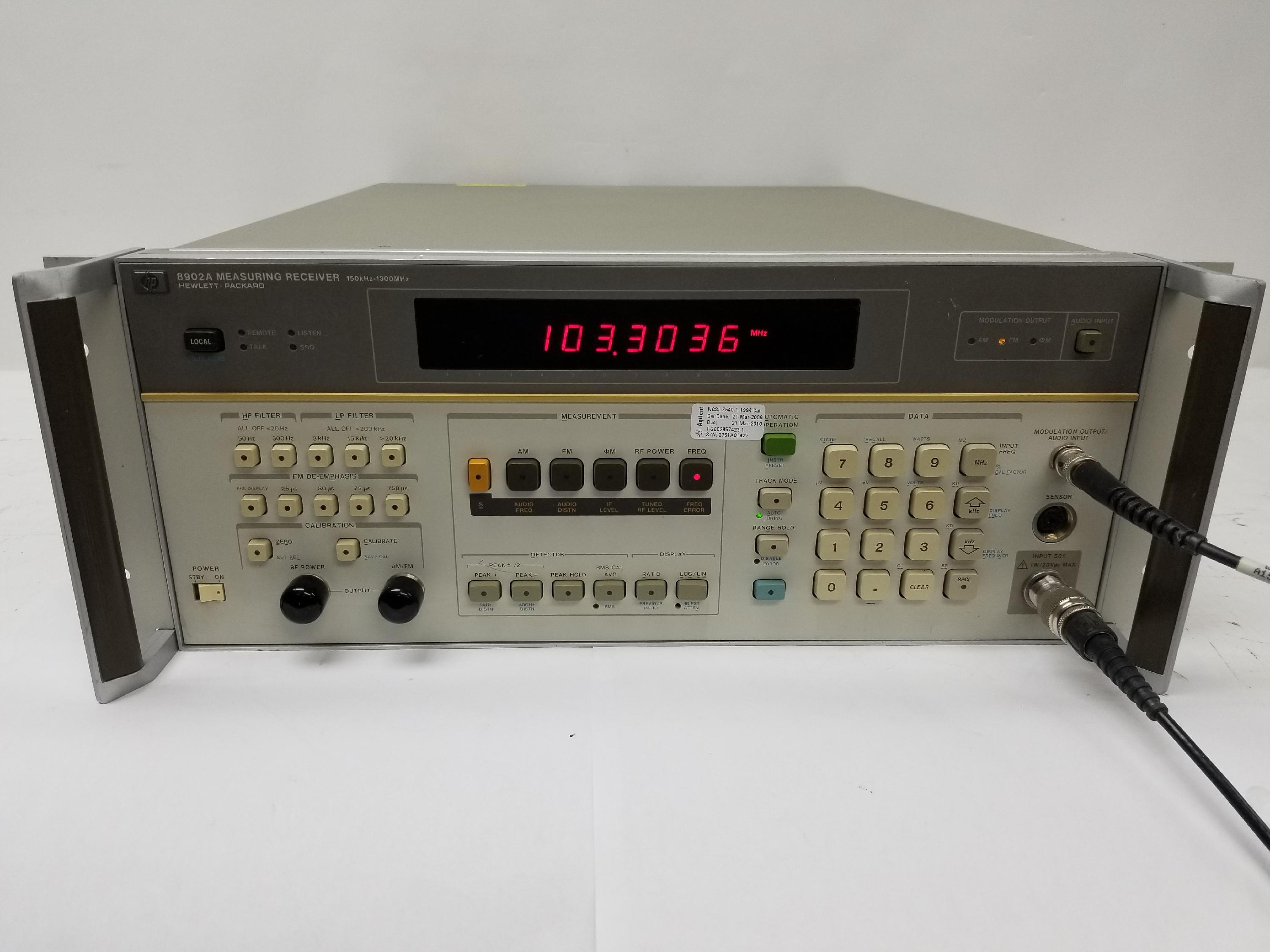

Keysight (Agilent) 8902A Measuring Receiver
Description of Keysight (Agilent) 8902A Measuring Receiver
The Agilent 8902A measuring receiver delivers the accuracy and
resolution of a high performance power meter at frequencies from
150 kHz to 1.3 GHz (50 MHz to 26.5 GHz with the Agilent 11793A
microwave converter) and levels from +30 dBm to -127 dBm. It
accurately measures AM, FM and M, including residuals and
incidentals, with a single keystroke. The Agilent 8902A measuring
receiver, with the Agilent 11793A, counts RF signals to 26.5 GHz
with 10 Hz resolution and excellent long-term frequency stability.
The 8902A measuring receiver with Option 050 offers increased power
measurement accuracy. This option specifies Tuned RF Level on the
8902A measuring receiver to an accuracy of ±(0.015 dB + 0.005 dB/10
dB step).
Features of Keysight (Agilent) 8902A Measuring Receiver:
- RF power: digital power meter accuracy
- Tuned RF level: 0 to -127 dBm dynamic range
- Carrier noise: AM and phase noise measurements to -140 dBc/Hz
- AM and FM: 1% accuracy; Phi-M:3% accuracy
- RF frequency: 1 Hz resolution
- Audio: level, frequency, and distortion
List of Options of Keysight (Agilent) 8902A Measuring Receiver:
8902A of 001 | Rear panel connectors instead of front |
8902A of 002 | 1x10e-9/Day Internal Reference Oscillator |
8902A of 003 | External LO Capability |
8902A of 004 | 48-440 Hz power line fan |
8902A of 021 | Add HP 11722A Sensor Module |
8902A of 030 | High Selectivity |
8902A of 032 | 12.5 kHz Adjacent Channel Filter |
8902A of 033 | 25 kHz Adjacent Channel Filter |
8902A of 035 | 30 kHz (Cellular Radio) Alternate Channel Filter |
8902A of 037 | Carrier Noise Filter (2 kHz BP Filter) |
8902A of 050 | Increased Power Measurement Accuracy |
8902A of 907 | Front handle kit |
8902A of 908 | Rack flange kit |
8902A of 909 | Front handle and rack flange kit |
8902A of 910 | Additional manuals |
8902A of 915 | Service manual |
8902A of ABJ | Japan Quick Users Guide (Japanese localization) |
8902A of C16 | C_CHP_.01U_50V |
8902A of C2X | 2x Calibration Service Agreement |
8902A of C3X | 3x Calibration Service Agreement |
8902A of E16 |
|
8902A of G50 |
|
8902A of H10 | IMPROVED TUNED RF LEVEL SPECIFICATIONS |
8902A of H20 | LOW RF EMI TO OUTPUT |
8902A of K09 | SPECIAL OPTION |
8902A of M40 | CALIBRATION/W DATA |
8902A of R24 | Extended 24 Month Warranty |
8902A of R36 | Extended 36 Month Warranty |
8902A of RC24 | Extended 24 Month Warranty & 2x Calibration Service Agreement |
8902A of RC36 | Extended 36 Month Warranty & 3x Calibration Service Agreement |
8902A of RMKT | Agilent Refurbished Product (Do Not Use - Certiprime Option) |
8902A of UK6 | Commercial calibration with test results data |
8902A of W30 | 3 Years Return for Repair Service |
8902A of W55 | 5 Year Service Warranty |
8902A of Z8902S/K01 | SPECIAL SOFTWARE |
