RIGOL DP2000 Series DP2031 High Performance Linear DC Power Supplies

Ask Lasest Price
Brand Name :	RIGOL
Model Number :	DP2031
Certification :	ISO:17025 Accredited Calibration
Price :	Negotiation
Payment Terms :	T/T
Supply Ability :	in stock
Delivery Time :	Negotiation

Add to Cart

Product Details
Company Profile

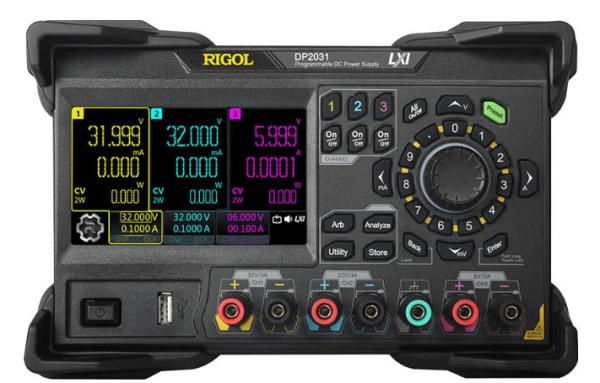

RIGOL DP2000 Series DP2031 High Performance Linear DC Power Supplies

RIGOL DP2000 Series DP2031 High Performance Linear DC Power Supplies

Description of RIGOL DP2000 Series DP2031 High Performance Linear DC Power Supplies

The DP2000 Series Power Supplies combine new high speed and high accuracy technology to provide a flexible test and analysis instrument for all of your DC power applications. The DP2031 is a 3 channel power supply with new capabilities that expand its value. First, the DP2031 comes with a low current measurement range that makes microamp measurements possible with 28 microamp accuracy and 1 microamp resolution. Combine that with the high-speed arb function that allows you to update the power supply output at up to 1000 times per second and you can quickly emulate battery configuration tests for all of your IoT and portable electronics. You can also combine channels 1 and 2 internally either in parallel or in series to expand the power envelope for your testing. No more cabling challenges since you can now get the current or voltage for both channels with one cable connection. This combination of flexibility and capability makes the DP2000 an important addition to any engineer’s bench.

Features of RIGOL DP2000 Series DP2031 High Performance Linear DC Power Supplies

4.3" Touch Screen
Fully isolated 3 channel linear power supplies
Low Current Measurement mode
High Speed Sampling Analysis mode
Automatic Internal Series & Parallel Connections
Fast Arbitrary Output mode

Specification of RIGOL DP2000 Series DP2031 High Performance Linear DC Power Supplies

Order information of RIGOL DP2000 Series DP2031 High Performance Linear DC Power Supplies

Model

DP2031	Programmable linear DC power supply, triple-output, high precision

Standard Accessories

— —	Power cord (based on destination country)
CB-USBA-USBB-FF-150	USB Cable
— —	One fuse

10A-Testing-Cable	Three pairs of connecting wires (10 A)

Option Accessory

DP2000-10A	CH3 10 A high range mode
RM-1-DP800	7.5 kSa/s high-speed sampling option
RM-1-DP800	DP2000 Rack Mount Kit (for a single instrument)

RM-2-DP800	DP2000 Rack Mount Kit (for two instruments side-by-side)
