2Hz-67GHz Signal RF Spectrum Analyzer Rohde And Schwarz FSW67

Ask Lasest Price
Brand Name :	Rohde and Schwarz
Model Number :	FSW67
Certification :	FCC
Price :	Negotiation
Payment Terms :	T/T
Supply Ability :	in stock

Add to Cart

Product Details
Company Profile

2Hz-67GHz Signal RF Spectrum Analyzer Rohde And Schwarz FSW67

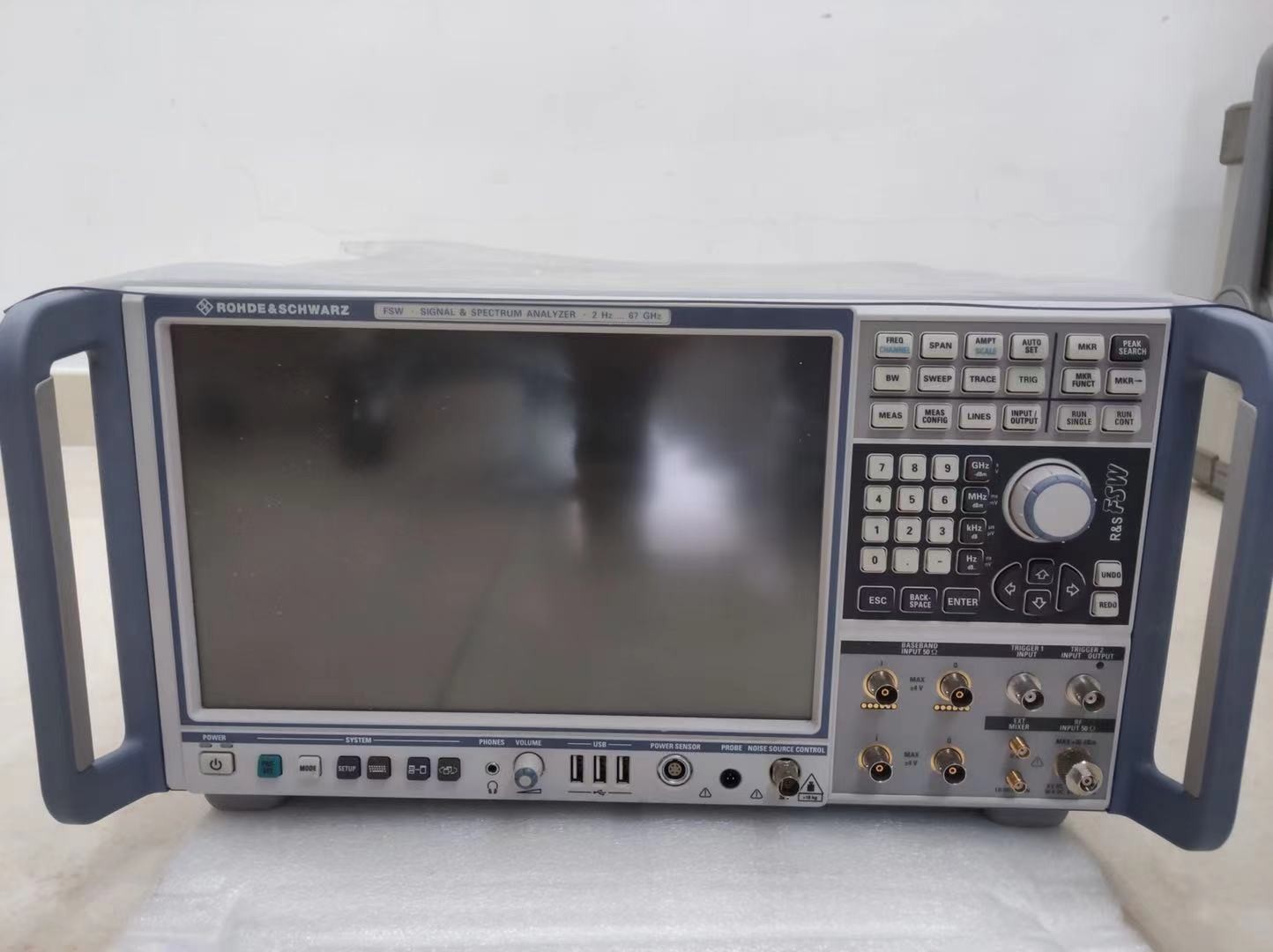

Rohde and Schwarz FSW67 RF Spectrum Analyzer 2 Hz to 67 GHz

Description of FSW67 Spectrum Analyzer

The high-performance R&S®FSW signal and spectrum analyzer was developed to meet demanding customer requirements. Offering low phase noise, wide analysis bandwidth and straightforward and intuitive operation, the analyzer makes measurements fast and easy.

Features:

Frequency range from 2 Hz to 8/13.6/26.5/43.5/50/67 GHz (with external harmonic mixers from Rohde & Schwarz up to 110 GHz)
Low phase noise of –137 dBc (1 Hz) at 10 kHz offset (1 GHz carrier)
WCDMA/HSPA/HSPA+
3GPP LTE
GSM/EGPRS/EDGE Evolution/VAMOS
CDMA2000® 1xEV-DO

List of Options

B4	Precision frequency refer
B500	500MHz Signal analysis BW
B8	Resolution bandwidth 10MH
FS-K100PC	EUTRA/LTE FDD Downlink PC Software
FS-K101PC	EUTRA/LTE Uplink FDD PC Software
FS-K102PC	EUTRA/LTE Downlink MIMO PC Software (incl. LTE-Advanced)
FS-K103PC	EUTRA/LTE Uplink MIMO PC Software (incl. LTE-Advanced)
FS-K104PC	EUTRA/LTE TDD Downlink PC Software
FS-K105PC	EUTRA/LTE TDD Uplink PC Software
FS-K130PC	Distortion Analysis Software
FS-K96	OFDM Vector Signal Analysis
FS-K96PC	OFDM Vector Signal Analysis
FSW-B10	External Generator Control
FSW-B13	Highpass Filters for Harmonic Measurements
FSW-B160	160 MHz Analysis Bandwidth
FSW-B17	Digital Baseband Interface
FSW-B18	Spare Solid State Disk (removable hard drive)
FSW-B21	LO/IF Ports for External Mixers
FSW-B24	Preamplifier, 100 kHz to 67 GHz
FSW-B25	Electronic Attenuator, 1 dB steps
FSW-B28	28 MHz Analysis Bandwidth
FSW-B320	320 MHz Analysis Bandwidth
FSW-B33	USB Mass Memory Write Protection
FSW-B4	OCXO Precision Reference Frequency
FSW-B40	40 MHz Analysis Bandwidth
FSW-B71	Analog Baseband Inputs
FSW-B71E	80 MHz Bandwidth for Analog Baseband Inputs
FSW-B80	80 MHz Analysis Bandwidth
FSW-K10	GSM, EDGE, EDGE Evolution and VAMOS measurements
FSW-K100	EUTRA/LTE FDD Downlink measurements
FSW-K101	EUTRA/LTE FDD UL MEASUREMENTS
FSW-K102	EUTRA/LTE DL/MIMO MEASUREMENTS
FSW-K104	EUTRA/LTE TDD Downlink measurements
FSW-K105	EUTRA/LTE TDD UL MEASUREMENTS
FSW-K160R	Real-Time spectrum analyzer
FSW-K17	Multicarrier Group Delay Measurements
FSW-K30	Noise Figure Measurements
FSW-K40	Phase Noise Measurements
FSW-K54	EMI Measurement Application
FSW-K6	Pulse Measurements
FSW-K7	Analog Modulation Analysis AM/FM/M
FSW-K70	Vector Signal Analysis
FSW-K72	3GPP FDD (WCDMA) BS Measurements (incl. HSDPA and HSDPA+)
FSW-K73	3GPP FDD (WCDMA) MS Measurements (incl. HSUPA and HSUPA+)
FSW-K76	TD-SCDMA BS MEASUREMENTS
FSW-K77	TD-SCDMA UE MEASUREMENTS
FSW-K82	CDMA2000® BS Measurements
FSW-K83	CDMA2000® MS Measurements
FSW-K84	1xEV-DO BS BS Measurements
FSW-K85	CDMA2000®/1xEV-DO MS Application Firmware
FSW-K91	802.11a/b/g Measurements
FSW-K91AC	802.11ac Measurements
FSW-K91N	802.11n Measurements
FSW-K91P	802.11p Measurements
FSW-U160	Analysis Bandwidth Upgrade from 80 MHz to160 MHz
FSW-U320	Analysis Bandwidth Upgrade from 160 MHz to 320 MHz
FSW-U40	Analysis Bandwidth Upgrade from 28 MHz to 40 MHz
FSW-U80	Analysis Bandwidth Upgrade from 40 MHz to 80 MHz

FAQ:
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .
