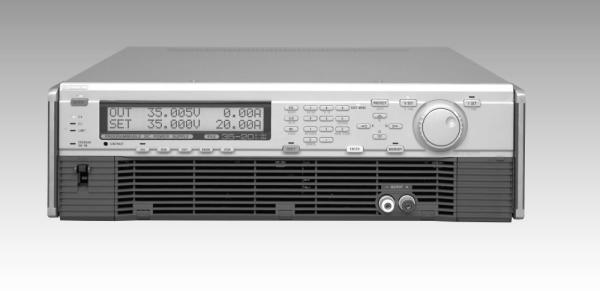

Kikusui PAX35-30 PAX35-30 35 V, 30 AMP, Programmable DC Power
Supply
Description of Kikusui PAX35-30
■ Equipped with a Sequence FunctionSequence patterns can be set
from the panel or using the GPIBinterface function, and then stored
in internal memory.Sequences can then be executed from not only the
panel, butalso by using a remote controller or host computer. In
addition,sequence speed can be selected from among a fast
speed,which allows programming of a single step at a minimum
of100µs intervals, or a normal speed, which allows programmingof
ramp waveforms in a single step.
■ 50µs High-Speed Compatibility (Fast Mode)Switching between 3
ranges and high-speed rise and fallcharacteristics of a maximum of
50µs allow these powersupplies to be used as simulation power
supplies.
■ Low Ripple NoiseThe excellent output characteristics through the
use of a poweramplification system allow these power supplies to be
usedwith communication devices, audio equipment and at EMCsites.
■ Expandability for System IncorporationThe use of Kikusui’s
original MCB system (multi-channelbus system) allows simultaneous
operation of a large numberof DC power supplies, allowing operation
of a maximum of16 units with a single GPIB address, as well as a
maximum of16 units with a single RS-232C port.
■ Human-Engineered Ease of OperationThe use of a jog shuttle
setting system allow settings to beentered easily corresponding to
the particular application.
Specifications & Attributes for Kikusui PAX35-30
(1) Large, Legible DisplayEL Backlighted LCD display is able to
display two rows of 20characters each.
(2) 2 Operating Modes for an Expanded Application Range1)Fast
ModeHigh-speed rise and fall at a maximum of 50µs realizes
addedconvenience in simulation testing.2)Normal ModeThe normal mode
allows the obtaining of an output having lowripple and low noise
levels.
(3) Selection of 2 Setting Methods to Match the Situation1)Jog
Shuttle Setting2)10-Key Setting
(4) Various Interfaces are Available(optional)1)GPIB2)RS-232C3)MCB
(Multi-Channel Bus System)The use of Kikusui’s original interface
function allows a largenumber of power supplies to be operated
simultaneously.
(5) Dual Speed Sequence Function1)Fast Speed Sequence (1024
steps/file)Allows programming of steps at a minimum of 100µs
intervals.2)Normal Speed Sequence (256 steps/file)Allows
programming of ramp waveforms in a single step.
(6) 4 Internal Memories for Added Convenience in
repetitiveTestingThe panel settings for voltage and current can be
stored inmemories A to D.
(7) Equipped with Convenient Trigger In/Out Function1)INThis allows
starting of the paused sequence.2)OUTThis allows the trigger to be
output at a specified point in thesequence program.
(8) Convenient Remote Controller (optional)1)RC02-PAX Remote
Controller
