- Precision 2-port microwave ECal module with high accuracy
- Frequency coverage from 300 kHz to 26.5 GHz or DC to 26.5 GHz
(Option 0DC)
- Fast, easy, and accurate full two-port calibration
- Supports 3.5 mm connectors
- Available in male/male (option M0M), female/female (option F0F),
and male/female (option M0F) connector configurations
- Direct control from Keysight vector network analyzers via USB

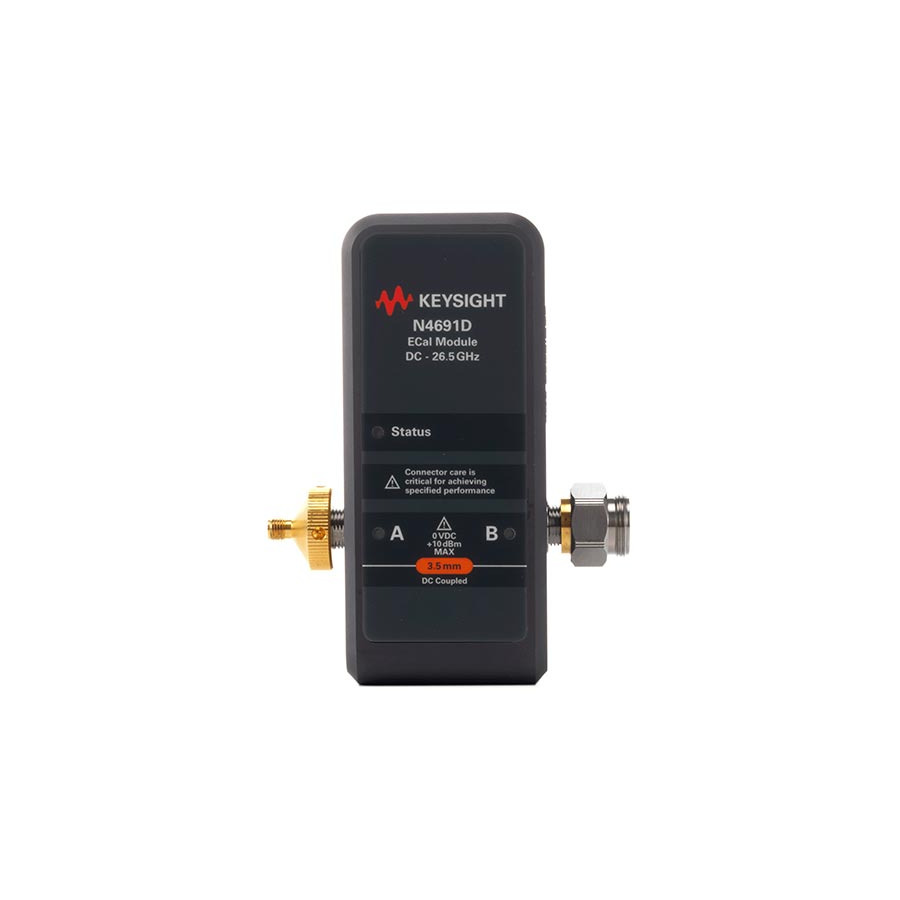

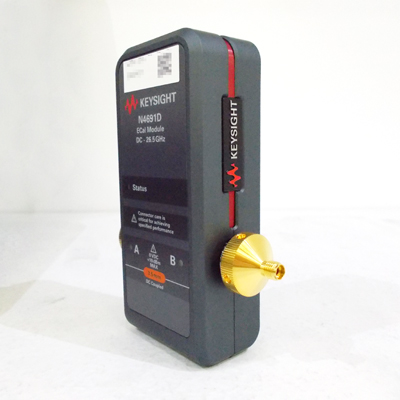

The Keysight N4691D microwave electronic calibration (ECal) module
makes calibration of Keysight vector network analyzers fast, easy
and accurate. The N4691D is a precision 2-port ECal module that
supports 3.5 mm connectors up to 26.5 GHz. Select either
female-female, male-male, or female-male connectors. The plastic
storage case for the N4691D is included for securing your ECal
module and accessories.
The N4691D Option 0DC extends the calibration frequency range down
to DC, which is beneficial for broadband device modeling or time
domain and signal integrity analysis using enhanced time
domain-analysis on the Keysight network analyzers.

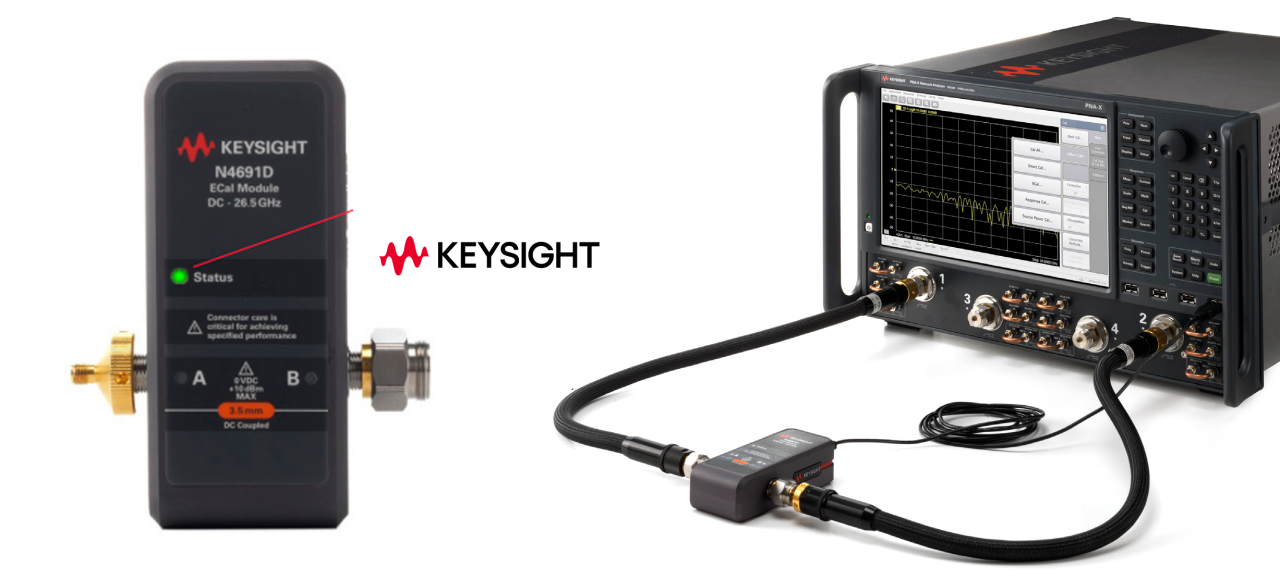

This ECal module is an ideal solution for calibrating vector
network analyzers. Performing a full two-port calibration takes
less than half the time and number of connections versus
traditional mechanical cal kits. The operator simply connects the
ECal module to the vector network analyzer via USB and the firmware
controls the rest, thus reducing the chance for operator error.
Wear and tear on connectors is reduced as well, lowering repair
costs on both the test port connectors and calibration standards.
Configuration of Keysight N4691D Electronic Calibration Module
(ECal)
| Options | Descriptions |
| Electronic Calibration (ECal) Module |
| N4690D | 18 GHz 2-port type-N 50 ohm ECal module |
| N4691D | 26.5 GHz 2-port 3.5 mm ECal module |
| N4692D | 40 GHz 2-port 2.92 mm ECal module |
| N4693D | 40 GHz 2-port 2.92 mm ECal module |
| N4694D | 67 GHz 2-port 1.85 mm ECal module |
| N4696D | 18 GHz 2-port 7 mm ECal module |
|
| Frequency options¹ |
| Option 0DC | Starts from DC (for all N469xD models) |
| Option 003 | Starts from 300 kHz (for N4690D, N4691D or N4696D) |
| Option 100 | Starts from 10 MHz (for N4692D, N4693D or N4694D) |
|
| Connector options2,3 |
| Option F0F | Both connectors are female on module |
| Option M0M | Both connectors are male on module |
| Option M0F | 1 female and 1 male connector on module |
|
| Calibration options |
| Option 1A7 | Calibration + Uncertainties + Guardbanding (Not Accredited) |
| Option A6J | ANSI Z540-1-1994 calibration |
| Option UK6 | Commercial calibration certificate test data |
|
| Adapter options (Option 00A)³ |
| N4690D-00A | Add type-N 50 ohm adapters |
| N4691D-00A | Add 3.5 mm adapters |
| N4692D-00A | Add 2.92 mm adapters |
| N4693D-00A | Add 2.4 mm adapters |
| N4694D-00A | Add 1.85 mm adapters |
