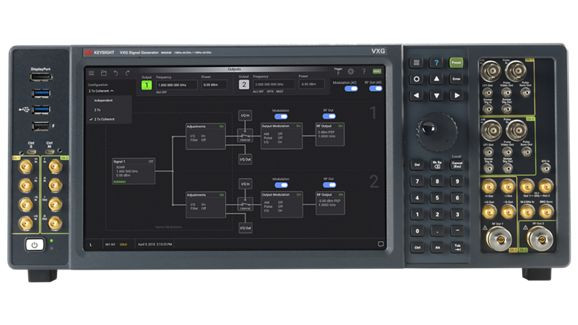

    Keysight Agilent M9384B VXG Microwave Signal Generator up to 44GHz

    Ask Lasest Price
    Brand Name : Keysight (Agilent)
    Model Number : M9384B
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : in stock
    • Product Details
    • Company Profile

    Keysight Agilent M9384B VXG Microwave Signal Generator up to 44GHz

    Keysight Agilent M9384B VXG Microwave Signal Generator up to 44 GHz
    Description of Keysight Agilent M9384B

    The M9384B VXG is the industry's first dual-channel microwave signal generators capable of up to 44 GHz signals.


    • Wide RF bandwidth (2 GHz)
    • PathWave Signal Generation software supports application-specific and custom signal creation
    • High output power to compensate for system loss and enable 5G power amplifier and over-the-air (OTA) testing
    • Phase coherent local oscillator (LO) and baseband synchronization for multi-user or beamforming MIMO OTA testing
    • 3GPP 5G NR standard-compliant signals with channel coding and multi-antenna port support

    Overview and Features of M9384B VXG Microwave Signal Generator

    • Bandwidth Options: 500MHz/1 GHz/2 GHz
    • Baseband Generator Mode: Waveform Playback
    • Form Factor: Benchtop
    • Frequency: 44 GHz
    • Frequency Options: 14 GHz/ 20 GHz/ 31.8 GHz/44 GHz
    • Frequency Switching (Typical): 28 ms (meas)
    • Harmonics @1 GHz: -46 dBc
    • Maximum Frequency: 44 GHz
    • Maximum Modulation Bandwidth: 2 GHz
    • Maximum Output Power: 20 dBm
    • Non-Harmonics @1 GHz: -50 dBc
    • Output Power @1 GHz: +20 dBm
    • Performance Level: ◆◆◆◆◆◇
    • Phase Noise @1 GHz (10 kHz offset): -137 dBc/Hz
    • Phase Noise @1 GHz (20 kHz offset): -137 dBc/Hz (10 kHz offset)
    • Sweep Mode: n/a
    • Type: Vector
    • Waveform Playback Memory:1024 MSa

    List of option of M9384B

    M9384B-001Add channel 1
    M9384B-D21RF bandwidth, 2 GHz with 256 MSa memory for frequency options F32 and F44
    M9384B-D06RF bandwidth, 500 MHz with 256 MSa memory for frequency options F32 and F44
    M9384B-D11RF bandwidth, 1 GHz with 256 MSa memory for frequency options F32 and F44
    M9384B-D05RF bandwidth, 500 MHz with 256 MSa memory for frequency options F14 and F20
    M9384B-D10RF bandwidth, 1 GHz with 256 MSa memory for frequency options F14 and F20
    M9384B-D20RF bandwidth, 2 GHz with 256 MSa memory for frequency options F14 and F20
    M9384B-D2ERF bandwidth, 2 GHz, 256 MSa memory for frequency options F32 and F44, limited
    M9384B-F44Frequency range, 1 MHz to 44 GHz
    M9384B-F32Frequency range, 1 MHz to 31.8 GHz
    M9384B-F14Frequency range, 1 MHz to 14 GHz
    M9384B-F20Frequency range, 1 MHz to 20 GHz
    M9384B-PMRPulse modulation
    M9384B-PMELimited Pulse Modulation
    M9384B-320Pulse Train Generator (SCPI Only)
    M9384B-1EBHigh output power from 20 GHz to 44 GHz
    M9384B-1E1High Output Power from 20 GHz to 43.5 GHz, limited above 43.5 GHz
    M9384B-600Enhanced high performance reference
    M9384B-500High performance reference
    M9384B-PCHPhase coherency for N channels
    M9384B-1EHImproved harmonics below 2 GHz
    M9384B-1ESImproved Signal to Noise Ratio (for 20 GHz and below)
    M9384B-ST6Enhanced low phase noise
    M9384B-ST5Low phase noise
    M9384B-DIQDifferential IQ outputs
    M9384B-EXTWideband differential external IQ inputs
    M9384B-M05Baseband generator memory upgrade to 512 MSa
    M9384B-M10Baseband generator memory upgrade to 1024 MSa
    M9384B-403Calibrated AWGN
    M9384B-002Add channel 2
    N7600EMBCSignal Studio for W-CDMA/HSPA+, waveform playback
    N7601EMBC1Signal Studio for cdma2000/1xEV-DO, waveform playback
    N7602EMBCSignal Studio for GSM/EDGE/Evo, waveform playback
    N7606EMBCSignal Studio for Bluetooth, waveform playback
    N7608EMBCSignal Studio Pro for Custom Modulation, waveform playback
    N7609EMBCSignal Studio for Global Navigation Satellite System (GNSS), waveform playback
    N7610EMBCSignal Studio for IoT, waveform playback
    N7611EMBCSignal Studio for broadcast radio, waveform playback
    N7612EMBCSignal Studio for TD-SCDMA/HSPA, waveform playback
    N7615EMBCSignal Studio for mobile WiMAX, waveform playback
    N7617EMBCSignal Studio for WLAN 802.11, waveform playback
    N7621EMBCPathWave Signal Generation for multitone and noise power ratio (NPR), Embedded Application
    N7623EMBCSignal Studio for digital video, waveform playback
    N7624EMBCSignal Studio for LTE/LTE-Advanced/LTE-A Pro FDD, waveform playback
    N7625EMBCSignal Studio for LTE/LTE-Advanced TDD, waveform playback
    N7631EMBCPathWave signal generation for 5G NR, Embedded application
    N7640EMBCSignal Studio for LMR, waveform playback
    N7642EMBCPathWave signal generation for IQ based AM, FM, phase modulation
    N7653EMBCPathWave automatic channel response correction and S-parameter de-embedding
    N7632EMBCPathWave Signal Generation for NR V2X, waveform playback
