- 6 GHz on all 4 analog channels
- Faster test speeds than ever before with ASIC s from the Infiniium
UXR-Series
- Accurate measurements with ENOB up to 9.0, noise as low as 43 µV
- Maximum memory is a flexible 1.6 G points
- Capabilities are extended with 8-in-1 instrument integration
- Upgradeable in every possible way — including bandwidth and channel
upgrades
What's included:
- One N2873A 500-MHz passive probe per channel
- Probe accessory pouch
- Localized power cord
- Front panel hard cover
- BNC calibration cable
- Keyboard and mouse
- Keysight I/O libraries suite, user guide, and programmer’s guide
ship on oscilloscope drive
- Service guide available on Keysight.com

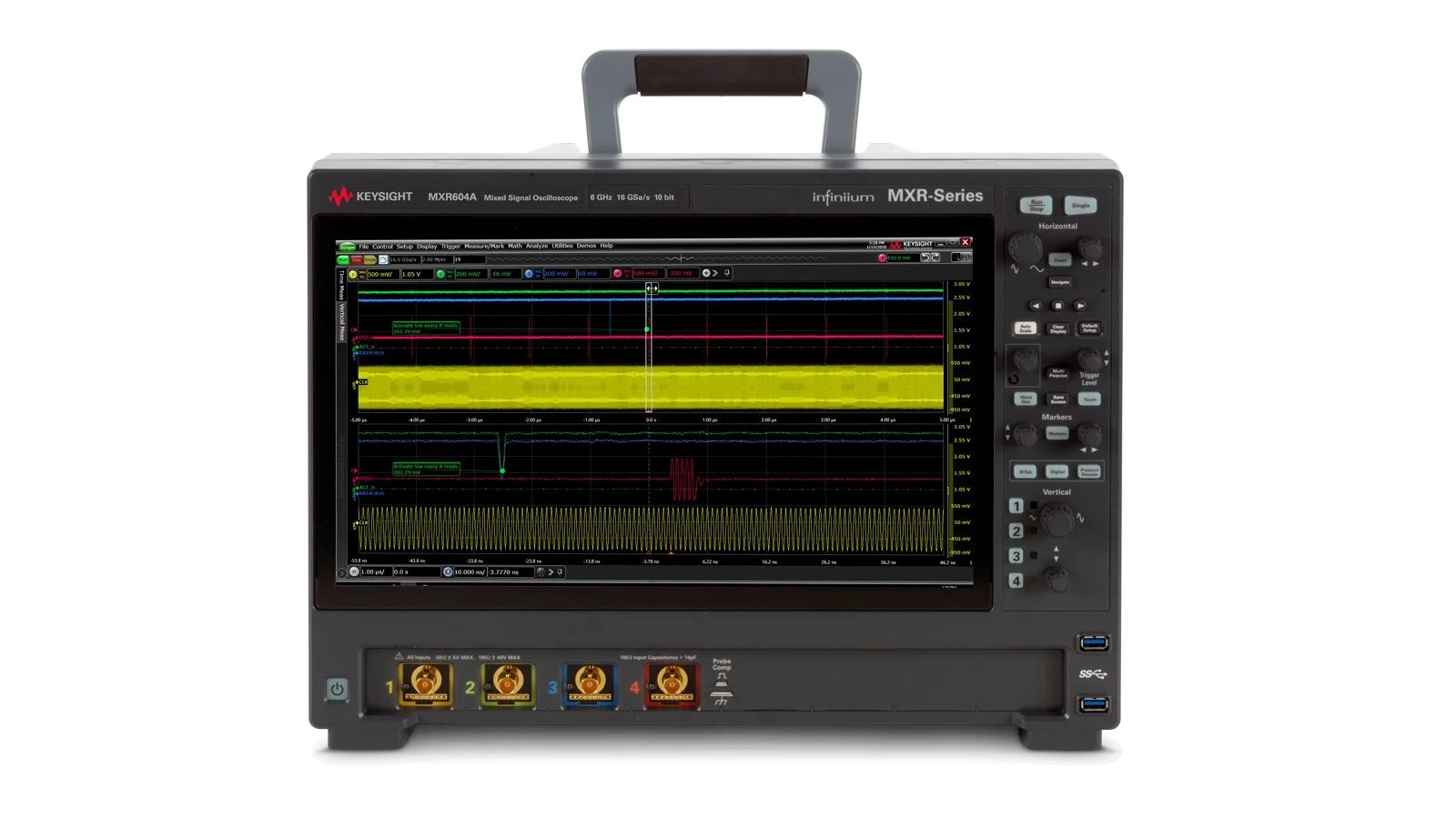

Options of MXR604A Infiniium MXR-Series Oscilloscope
Additional Memory
MXR000-200 Standard 200 Mpts/ch Memory
MXR000-400 Memory Upgrade, from 200 Mpts/ch to 400 Mpts/ch
Instrument Options
MXR000-MSO MSO Upgrade, 16 channels
Advanced RTSA and DDC
MXR000-320 RTSA (320 MHz Span) and DDC (up to 2 GHz Span)
MXR000-160 RTSA (160 MHz Span) and DDC (up to 2 GHz Span)
Analysis Software Applications with support
D9010JITA EZJIT Complete - Jitter, Vertical and Phase Noise Analysis Software
D9010SCNA InfiniiScan Measurement and Zone Triggering Software
D9010DMBA De-embedding Software (Precision Probe, InfiiniSim Basic
D9010POWA Power Integrity Analysis Software
D9010PWRA Power Supply Test Software for Infiniium Oscilloscopes
D9010UDAA User Defined Application Software
D9020ASIA Advanced Signal Integrity Software (EQ, InfiiniSimAdv, Crosstalk)
D9010ASIA Advanced Signal Integrity Software (EQ, InfiiniSimAdv, Crosstalk)
for MXR/EXR/S-Series
Software, Protocol Applications with support
D9010LSSP Low Speed Protocol Decode/Trigger Software (I2C, SPI, RS232, I2S,
JTAG ...)
D9010AUTP Automotive Protocol Decode/Trigger Software (CAN, CAN-FD, CAN-XL,
LIN, FlexRay, SENT)
D9010EMBP Embedded Protocol Decode/Trigger Software (USB2.0, eUSB2, 10/100
ETH, PCIe 2/1 ...)
D9010MCDP MIPI CSI and DSI Protocol Decode/Trigger Software (C-PHY and D-PHY)
D9010MILP Military Protocol Decode/Trigger Software (ARINC 429, MIL-STD 1553,
SpaceWire)
D9010MPLP Low Speed MIPI Protocol Decode/Trigger Software (RFFE, I3C, SPMI)
D9010MPMP MIPI M-PHY Protocol Decode/Trigger Software
(DigRF,LLI,CSI-3,UniPro,UFS,SSIC)
D9010USBP USB4v2, USB4, USB 3.x, and eUSB2 Protocol Decode/Trigger Software
D9011BDLP Basic Infiniium Protocol Decode/Trigger Bundle
D9020AUTP High Speed Automotive Protocol Decode/Trigger Software (100BASE-T1,
1000BASE-T1, 10Base-T1S)
D9010EKRP 10G/100GBASE-KR 64b/66b and Link Training Decode/Trigger Software
D9010PCIP Advanced PCIe Protocol Decode/Trigger Software (PCIe 6/5/4/3/2/1,
SATA/SAS)
Softwave, Compliance Applications with support
D9010CPHC MIPI C-PHY Tx Compliance Software
D9010ETHC Ethernet Tx Compliance Software (Ethernet, EEE)
D9010USBC USB 2.0 Tx Compliance Software
D9020DPHC MIPI D-PHY Tx Compliance Software
D9010XAUC XAUI Tx Compliance Software
AE6910T Automotive Ethernet Tx Compliance Software 10M to 5GBASE-T1
D9030DDRC DDR3 and LPDDR3 Tx Compliance Software
D9040PCIC PCI Express Tx Compliance Software
D90103BQC IEEE 802.3bq (25GBASE-T) physical layer validation application
Accessories
MXR2RACK Rackmount Kit for Infiniium MXR-Series, 8U
N2796A Active probe - 2 GHz single-ended
