Fluke 117/323 Electricians Combo Kit, Digital Multimeter and Clamp
Meter
Description of Fluke 177/323 Electricians Combo Kit, Digital
Multimeter and Clamp Meter
Having the right tools for the job is essential. Having them when
you need them is even better. Arrive on every jobsite prepared with
the Fluke 117/323 electricians multimeter and clamp meter combo
kit. The two test tools give you the power of a versatile, rugged
multimeter combined with a fast-acting, general-purpose clamp
meter.
Whether you work in residential electricity or commercial
electrical, both of these test tools are a good fit for the work

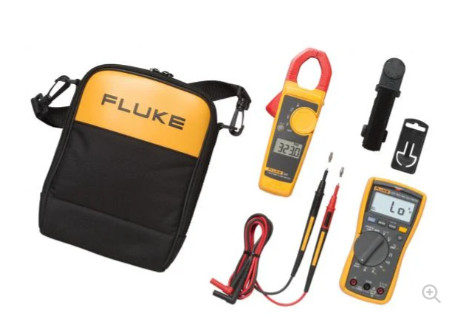

you need to complete. The kit includes
- Fluke 117 digital multimeter
- Fluke 323 clamp meter
- Tl175 test leads
- TPAK ToolPak magnetic meter hanger
- Soft carrying case
The Fluke 117 digital multimeter is built to make your life easier
with features like:
- Non-contact voltage detection
- AutoV/LoZ function
- Min/Max/Average readings
- Frequency measurements
- Capacitance measurements
In order to ensure you’re ready to go on many jobsites, the 117 is
certified for use in CAT III 600 V environments.
The Fluke 323 clamp meter is a good basic troubleshooting tool for
commercial and residential electricians. It includes true rms
measurements, optimized ergonomics and a large display for
efficient troubleshooting. The small clamp is designed to make
measurements in tight cable compartments easier on you and it’s
ideally suited for current measurements up to 400 A or voltage
measurements up to 600 V.
Together, the Fluke 117 Electrician’s Multimeter and 323 True-rms
Clamp Meter give electricians easy to use, time-saving tools for
your work.
Specification of Fluke 117/323 Electricians Combo Kit, Digital Multimeter and Clamp Meter
Fluke 117 Digital Multimeter
| Maximum voltage between any terminal and earth ground | 600 V |
| Surge protection | 6 kV peak per IEC 61010-1 600 VCAT III, Pollution Degree 2 |
| Fuse for A input | 11 A, 1000 V FAST Fuse (Fluke PN 803293) |
| Display | Digital: 6,000 counts, updates 4 per second |
| Bar graph | 33 segments, updates 32 per second |
| Operating temperature | -10 °C to +50 °C |
| Storage temperature | -40 °C to +60 °C |
| Battery type | 9 volt Alkaline, NEDA 1604A/ IEC 6LR61 |
| Battery life | 400 hours typical, without backlight |
| Accuracy Specifications |
| DC millivolts | Range/Resolution | 600.0 mV / 0.1 mV |
| Accuracy | ±([% of reading] + [counts]): 0.5% + 2 |
| DC volts | Range/Resolution | 6.000 V / 0.001 V
60.00 V / 0.01 V
600.00 V / 0.1 V |
| Accuracy | ±([% of reading] + [counts]): 0.5% + 2 |
| Auto volts | Range/Resolution | 600.0 V / 0.1 V |
| Accuracy | 2.0% + 3 (DC, 45 Hz to 500 Hz)
4.0% + 3 (500 Hz to 1 kHz) |
| AC millivolts¹ True RMS | Range/Resolution | 600.0 mV / 0.1 mV |
| Accuracy | 1.0% + 3 (DC, 45 Hz to 500 Hz)
2.0% + 3 (500 Hz to 1 kHz) |
| AC volts¹ True RMS | Range/Resolution | 6.000 V / 0.001 V
60.00 V / 0.01 V
600.0 V / 0.1 V |
| Accuracy | 1.0% + 3 (DC, 45 Hz to 500 Hz)
2.0% + 3 (500 Hz to 1 kHz) |
| Continuity | Range/Resolution | 600 Ω / 1 Ω |
| Accuracy | Beeper on < 20 Ω, off > 250 Ω; detects opens or shorts of
500 μs or longer. |
| Ohms | Range/Resolution | 600.0 Ω / 0.1 Ω
6.000 kΩ / 0.001 kΩ
60.00 kΩ / 0.01 kΩ
600.0 kΩ / 0.1 kΩ
6.000 MΩ / 0.001 MΩ |
| Accuracy | 0.9% + 1 |
| Range/Resolution | 40.00 MΩ / 0.01 MΩ |
| Accuracy | 5% + 2 |
| Diode test | Range/Resolution | 2.00 V / 0.001 V |
| Accuracy | 0.9% + 2 |
| Capacitance | Range/Resolution | 1000 nF / 1 nF
10.00 μF / 0.01 μF
100.0 μF / 0.1 μF
9999 μF / 1 μF
100 μF to 1000 μF |
| Accuracy | 1.9% + 2 |
| Range/Resolution | > 1000 μF |
| Accuracy | 5% + 20% |
| Lo-Z capacitance | Range | 1 nF to 500 μF |
| Accuracy | 10% + 2 typical |
| AC amps True RMS (45 Hz to 500 Hz) | Range/Resolution | 6.000 A / 0.1 A
10.00 A / 0.01 A |
| Accuracy | 1.5% + 3
20 A continuous overload for 30 seconds max |
| DC amps | Range/Resolution | 6.000 A / 0.1 A10.00 A / 0.01 A |
| Accuracy | 1.0% + 3
20 A continuous overload for 30 seconds max |
| Hz (V or A input)² | Range/Resolution | 99.99 Hz / 0.01 Hz
999.99 Hz / 0.1 Hz
9.999 Hz / 0.001 Hz
50.00 Hz / 0.01 Hz |
| Accuracy | 0.1% + 2 |
Fluke 323 True RMS Clamp Meter
| Specifications |
| AC current | Range | 400.0 A |
| Accuracy | 2% ±5 digits
(45 Hz to 65 Hz)
2.5% ±5 digits
(65 Hz to 400 Hz) |
| AC voltage | Range | 600.0 V |
| Accuracy | 1.5% ±5 digits |
| DC voltage | Range | 600.0 V |
| Accuracy | 1.0% ±5 digits |
| Resistance | Range/Resolution | 400.0 Ω/ 4000 Ω |
| Accuracy | 1.0% ±5 digits |
| Continuity | ≤ 70 Ω |
| AC response | True RMS |
| Data hold | Yes |
| Size | H x W x D (mm) | 207 x 75 x 34 |
| Max wire diameter | 30 mm (600 MCM) |
| Weight | 265 g |
| Category rating | CAT III 600 V
CAT IV 300 V |
| Warranty | Two-year |
