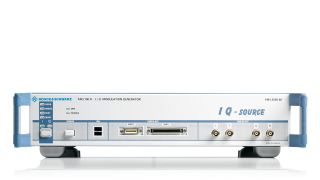

    Rohde and Schwarz AFQ100A I/Q Modulation Generator AFQ100A

    Ask Lasest Price
    Brand Name : Rohde & Schwarz
    Model Number : AFQ100A
    Certification : ISO17025
    Price : Negotiation
    Payment Terms : Western Union, MoneyGram, T/T
    Supply Ability : In Stock
    Delivery Time : 1~3 Working Days
    • Product Details
    • Company Profile

    Rohde and Schwarz AFQ100A I/Q Modulation Generator AFQ100A

    Rohde and Schwarz AFQ100A I/Q Modulation Generator AFQ100A

    Description of R&S AFQ100A I/Q Modulation Generator

    Digital communications systems are rapidly evolving today, calling for test equipment that can meet the new challenges they present. An important component of such test equipment is a flexible baseband source that allows development and production tests to be performed on state-of-theart receivers for a variety of standards. A self-contained baseband source must fulfill a wide range of signal requirements. Plus, it needs variable digital and analog outputs in order to directly operate the DUT. Used as a modulation source for vector signal generators, the R&S® AFQ100A provides I/Q signals that offer all the sophistication of modern communications standards for generating the required RF signal. Featuring a maximum clock rate of 300 MHz and a waveform memory of up to 1 Gsample, the new R&S® AFQ100A generator provides unprecedented functionality and offers precisely the flexibility that is required. It allows long sequences to be generated for bit error ratio measurements; moreover, its high clock rate provides the necessary bandwidth for supporting future broadband communications systems. Especially in the case of very broadband applications, modules such as I/Q modulators produce a nonlinear frequency response. To compensate for this effect, the R&S® AFQ100A is equipped with an equalizer that linearizes the entire frequency response in realtime. The R&S® AFQ100A combines flexibility with outstanding signal quality. Its spurious suppression, for example, is first-rate, and its frequency response extremely linear. All these basic features combined with a host of other functions make the R&S® AFQ100A a versatile baseband generator that can easily be adapted to changes.


    Specifications & Attributes (Signal Gen/Synthesizers/Sweepers)
    Form Factor
    Benchtop
    Plug-In ( /EX-IQ-BOX )
    Application Software
    1xEV-DO ( /K247 )
    Bluetooth ( /K260 )
    cdma2000 ( /K246 )
    DVB ( /K252 )
    EDGE ( /K240 )
    GPS ( /K244 )
    GSM ( /K240 )
    HSDPA ( /K243 )
    HSUPA ( /K245 )
    LTE ( /K255 )
    TD-SCDMA ( /K250 /K251 )
    Frequency
    300 MHz
    Modulation
    Pulse ( /K6 )
    Type
    Analog
    Digital
    RF

    List of Options R&S AFQ100A I/Q Modulation Generator


    0A-C5Five years of depot calibration coverage based on the R&S recommended calibration interval - includes test data.
    0A-R3Three years of depot repair coverage, including re-calibration if necessary to complete the repair.
    0A-R5Five years of depot repair coverage, including re-calibration if necessary to complete the repair.
    A-DKDACCREDITED CALIBRATION DKD INCL. CALIBRATION RESULTS
    B10Waveform memory 256 Msamples, only for AFQ100A (factory fitted)
    B11Waveform memory 1 Gsamples (factory fitted)
    B12Waveform memory 512 MSamples only for the AFQ100B (factory fitted)
    B18Digital IQ outputs parallel and serial, 16 bit
    C5Five years of depot calibration coverage based on the R&S recommended calibration interval - includes test data. The first calibration is included with product delivery with 4 additional depot calibration(s).
    DCV-2Documentation of calibration values
    DCV-ZPPrintout of DCV (additional, in combination with DCV-Option only)
    EX-IQ-BOXDigital I/O adapter module for AFQ, AMU, FMU, FSG, FSQ, SMJ, SMU (AFQ-B18, AMU-B17, AMU-B18, FSQ-B17,
    K240Digital standard GSM/EDGE. WinIQSIM 2 required
    K241Digital standard EGDE Evolution (AFQ-K240 and external PC software WinIQSIM2 required)
    K242Digital standard 3GPP FDD. WinIQSIM 2 required
    K2433GPP FDD enhanced MS/BS tests incl. HSDPA. AFQ-K242 and WinIQSIM 2 required
    K244Digital standard GPS. (1 satellite supported, WinIQSIM 2 required)
    K245Digital standard HSUPA. AFQ-K242 and WinIQSIM 2 required
    K246Digital standard CDMA2000 incl. 1xEV-DV. WinIQSIM 2 required
    K247Digital Standard 1xEV-DO Rev.A (WinIQSIM 2 required)
    K248Digital standard IEEE 802.11 (a/b/g). WinIQSIM 2 required
    K249Digital standard IEEE 802.16. WinIQSIM 2 required
    K250Digital standard TD-SCDMA. WinIQSIM 2 required
    K251Digital standard TD-SCDMA enhanced features. WinIQSIM 2 required
    K252Digital Standar DVB-H. WinIQSIM 2 required
    K254Digital Standard IEEE 802.11n (WinIQSIM 2 required)
    K255Digital Standard LTE/EUTRA. WinIQSIM 2 required
    K256Playback of XM Radio waveforms (license and waveforms from XM Radio required,
    K259Digital standard HSPA+ (AFQ-K243/K245 and external PC software WinIQSIM2 required)
    K260Digital standard Bluetooth Enhanced Data Rate (AFQ-B10/B11/B12 and ext. PC software
    K261Multicarrier CW signal generation WinIQSIM 2 required
    K262Additive white gaussian noise. WinIQSIM 2 required
    K352HD Radio test waveforms (Ibiquity license for customer required, AFQ-B10/B11/B12 required)
    K6Pulse Sequencer; external PC software
    K80Bit error rate tester
    R3Three years of depot repair coverage, including re-calibration if necessary to complete the repair. First year of repair coverage is provided by the 12-month new product warranty.
    R5Five years of depot repair coverage, including re-calibration if necessary to complete the repair. First year of repair coverage is provided by the 12-month new product warranty.
    SPLSPECIAL UPGRADE FROM B10 TO B11

    Our service:


    One-stop service from manufacture to shipping.
    1. Your inquiry related to our products or prices will be replied in 24hours.
    2. Well-trained and experienced staffs to answer all your enquires influent English.
    3. Distributor ship is offered for your unique desigh and some our current models.
    4. Protection of your sales area, ideas of design and all your private information.


    FAQ:

    1.Can you ship order to Canada or Australia ?

    Yes,we can .We send orders worldwide .

    2. What delivery method do you use ? and delivery time ?

    We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

    3. What is your payment term?

    100% T/T payment before shipment.

    4. How can I ask any other question ?

    You can contact us online or leave us messages below.
