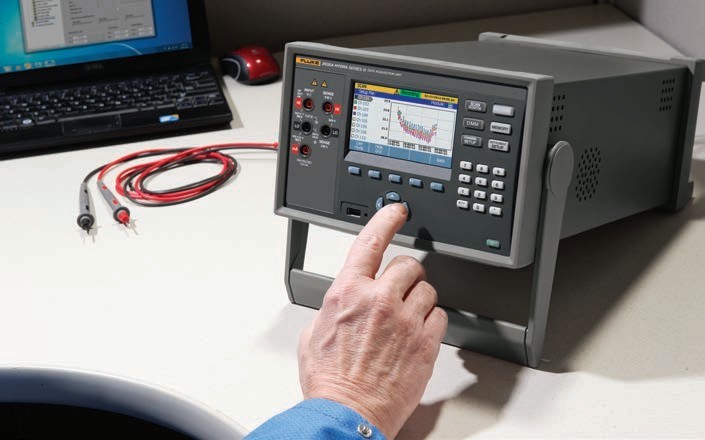

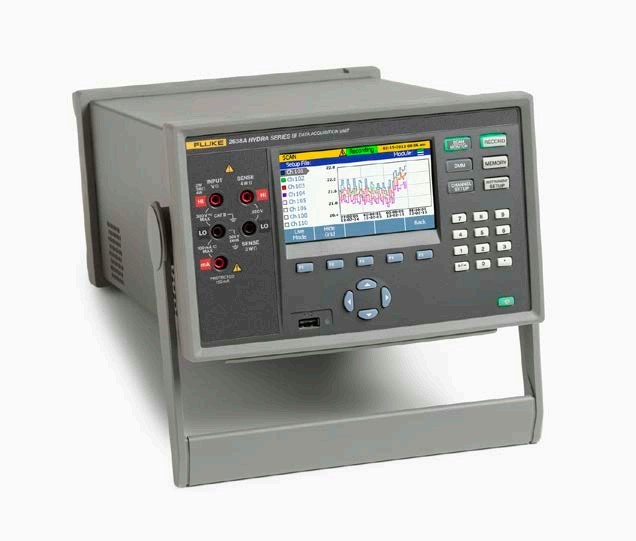

Fluke 2638A Hydra Series III Data Acquisition System/ Digital
Multimeter
ACCURATE
DC accuracy of 0.0024 % and thermocouple accuracy of 0.5 °C
EXPANDABLE CHANNELS
Up to 66 universal differential isolated inputs, 20 on-board math
channels, 45 channels/second basic dc scan rate
SELECTABLE INPUTS
Ac V, dc V, ac I, dc I, thermocouple, PRT (2, 3, 4 w), thermistor,
resistance (2-4 w), frequency
DIGITAL MULTIMETER MODE
6.5-digit bench DMM function for frontpanel inputs
ONE-BUTTON SCREEN CAPTURE
For chart or data displays, color trendgraphing and analysis
MULTI-CHANNEL REAL-TIME DATA
Monitor function for real-time viewing and charting between scans
MEMORY AND DATA
Internal 75,000 scan/setup file memory, USB flash drive support,
data security features
SAFETY RATING
Only general purpose portable data acquisition system with an IEC
Category II 300 V safety rating
Measurement specifications
Accuracy specifications generally are valid for 6.5 digit
resolution mode (unless otherwise noted) after a minimum of
one-hour warm-up, and within an operating temperature range of 18
°C to 28 °C. Derating applies with a fast sample rate and for
operating temperatures outside the limited range. Twenty-four-hour
specifications are relative to calibration standards and assume a
controlled electromagnetic environment per EN 61326. The confidence
level for accuracy specifications is 95 % within one year of
calibration (unless otherwise noted).
Ordering information
2638A/20 Data Acquisition Unit/Data Logger: 20 universal channels includes
one relay board (2638A-RLY) and one (2638A-100) connector
2638A/40 Data Acquisition Unit/Data Logger: 40 universal channels includes
two relay boards (2638A-RLY) and two (2638A-100) connectors
2638A/60 Data Acquisition Unit/Data Logger: 60 universal channels includes
three relay boards (2638A-RLY) and three (2638A-100) connectors
Power selection: Specify 100 V, 120 V, 220 V, 240 V power when ordering (power
settings may be changed by the user)
Included
Each 2638A is shipped with relay boards and Universal Input
Connectors installed, test leads, safety information and
2680A-APSW/L (Lite version) on DVD, power cord, screwdriver, and
traceable calibration report with data.
Accessories
2638A-20chkit 20-Channel Expansion Kit for 2638A (includes one relay board
(2638A-RLY) and one (2638A-100) connector)
2638A-100 Extra Universal Input Module for 2638A
2638A-RLY Extra Relay Board for 2638A (Replacement)
Y2638S 19-Inch Rackmount, Single Mounting, 2638A
Y2638D 19-Inch Rackmount, Dual Mounting, 2638A
2638A-101 10 Ohm Shunt Resistors (Quantity 10 each) 100 mA max, 0.05 %
2638A-1GB 1 GB USB Flash Memory 2638A/CASE 2638A Transit Case
Options
Accredited Calibration Certificate 17025: add option/C to model
2680A-APSW Fluke DAQ 6.0 Application Software for 2638A, 2680A, NetDAQ®
Networked Data Acquisition Unit
2680A-904 Trend Link for Fluke Data Acquisition Products (requires
2680A-APSW)
