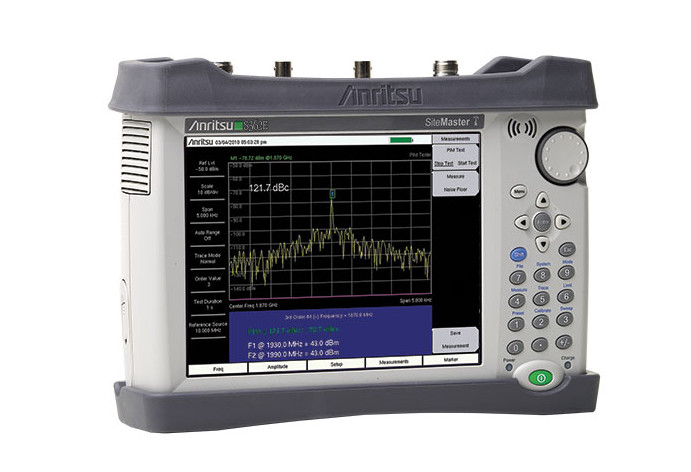

The Next Generation Anritsu Site Master represents a fusion of cutting-edge technology, customer-driven innovation, and decades of expertise in test and measurement solutions. It seamlessly integrates cable and antenna analysis with spectrum analysis and monitoring functionalities, offering a comprehensive testing solution for professionals across various industries. From telecommunications and broadcasting to aerospace and defense, the Site Master cable and antenna analyzer with Integrated spectrum analyzer caters to a wide range of applications, including DAS, satellite monitoring, interference analysis, and installation and maintenance tasks.

• Return Loss, Cable Loss, VSWR, Distance-To-Fault

• Phase, 2-port Transmission Measurements

• Spectrum Analyzer, Interference Analyzer, High Accuracy Power Meter

• Channel Scanner, GPS, AM/FM/PM Analyzer

• Field-proven design: Four-hour battery life, rugged, compact, lightweight, daylight viewable display

• Intuitive menu-driven touch screen user interface

• USB connectivity, built-in touch screen keyboard

Cable and Antenna Analyzer Highlights of Anritsu S362E

• Measurements: RL, VSWR, Cable Loss, DTF, Phase
• 2-port Transmission Measurement: High/Low Power
• Sweep Speed: 1 ms/data point, typical
• DTF Time Delay
• Display: Single or Dual Measurement Touchscreen
• Calibration: OSL, InstaCal™, and FlexCal™
• Bias Tee: 32 V internal

Spectrum and Interference Analyzer Highlights of Anritsu S362E

• • Measurements: Occupied Bandwidth, Channel Power, ACPR, C/I
• • Interference Analyzer: Spectrogram, Signal Strength, RSSI, Signal ID, Interference Mapping
• • Dynamic Range: > 95 dB in 10 Hz RBW
• • DANL: –152 dBm in 10 Hz RBW
• • Phase Noise: –100 dBc/Hz max @ 10 kHz offset at 1 GHz
• • Frequency Accuracy: < ± 50 ppb with GPS On

List of Options of S362E

FAQ:
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .
