Keysight Agilent 346B Noise Source 10 MHz to 18 GHz nominal ENR 15
dB
Description of Keysight Agilent 346B Noise Source 10 MHz to 18 GHz
nominal ENR 15 dB

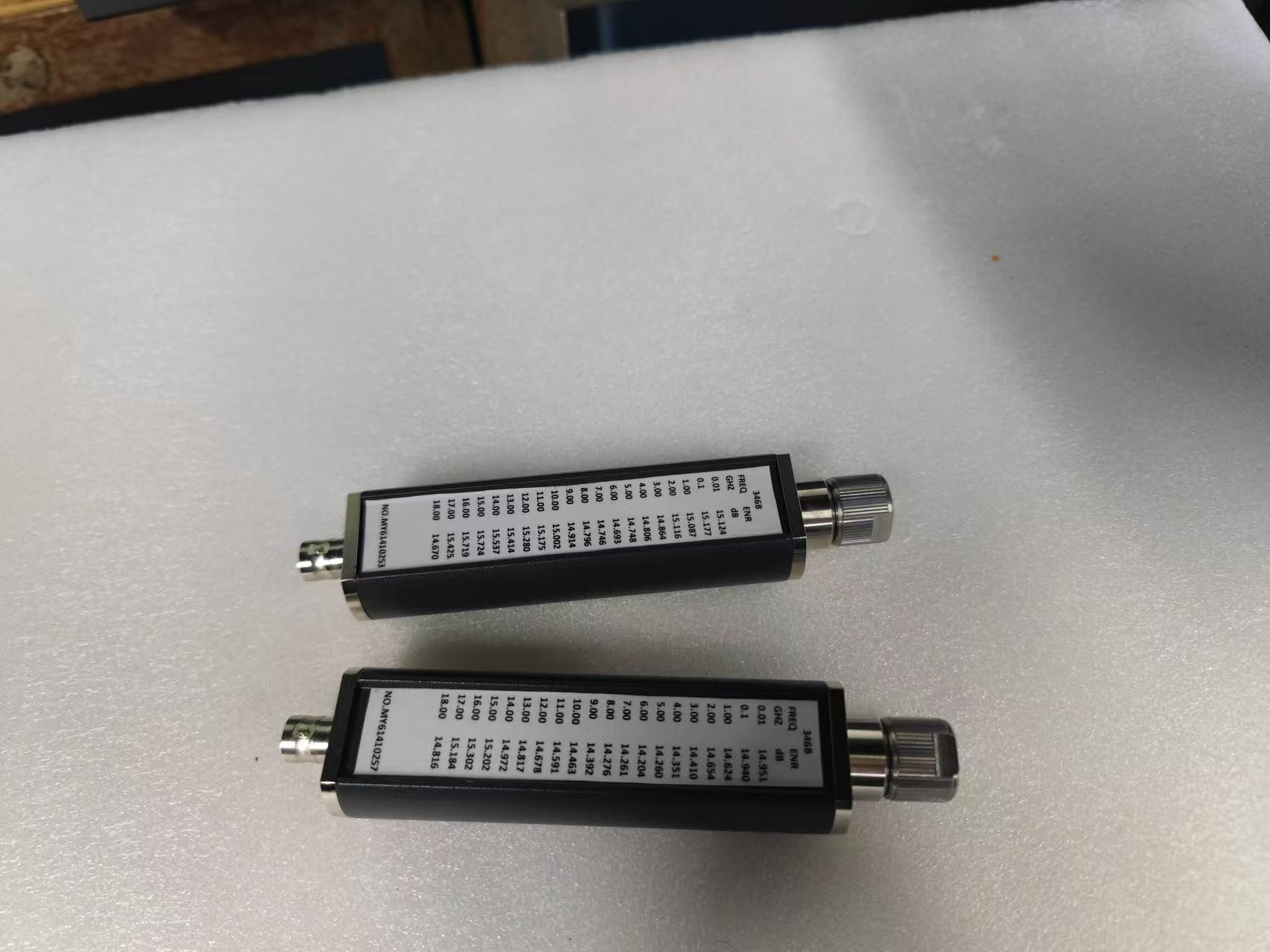

The Keysight 346B noise source is the ideal companion to Keysight's
noise figure solutions. Since it is broadband (10 MHz to 18 GHz),
it eliminates the necessity for several sources at different
frequency bands. The low SWR of the noise source reduces a major
source of measurement uncertainty, which are reflections of the
test signals. Add special option H01 for high ENR (21 dB typical)
to measure high noise figure devices, or option H42 for measuring
Direct Broadcast Satellite (DBS) low noise block converters.
- Frequency range: 10 MHz to 18 GHz
- VSWR: < 1.3:1
- Connectors: BNC (f) input bias / 3.5 mm (m)
- Low SWR for reducing noise figure measurement uncertainty
- Individually calibrated ENR values at specific frequencies
Specification of Keysight Agilent 346B
ENR Automatic Download:
No
Excess Noise Ratio (ENR):
14-16 dB
Minimum Frequency Range:
10 MHz
Temperature Compensation:
No
Works with:
NFA, ESA-E Series, PNA-X, PSA-Series, X-Series (PXA, MXA, EXA, CXA)
List of Options OF 346B
| 001 | Type N (male) connector |
| 002 | APC-7 Connector |
| 004 | Type N (female) connector |
| 100 | 3.5 mm (M) Connector |
| 1BN | Military Standard 45662A Calibration Certification |
| 910 | Additional operating and service manual |
| H01 | APC 3.5(m) connector with 21 dB nominal ENR |
| H10 | NPL calibrated transfer standard |
| H13 | LAB STD CAL |
| H42 | DBS waveguide adapter and nominal ENR 5 dB |
| H71 | Type N (male) connector with 21 dB nominal ENR |
| H72 | APC-7 connector with 21 dB nominal ENR |
| H73 | Type N (female) connector with 21 dB nominal ENR |
| R-50C-011-3 | Agilent Calibration - 3 years |
| R-50C-011-5 | Agilent Calibration - 5 years |
| R-50C-016-3 | ISO 17025 Compliant Calibration - 3 years |
| R-50C-016-5 | ISO 17025 Compliant Calibration - 5 years |
| R-50C-021-3 | ANSI Z540-1-1994 Calibration - 3 years |
| R-50C-021-5 | ANSI Z540-1-1994 Calibration - 5 years |
| R-51B-001-3C | Return to Agilent Warranty - 3 years |
| R-51B-001-5C | Return to Agilent Warranty - 5 years |
| R-51B-001-C | Return to Agilent Warranty - 1 year |
| RMKT | Agilent Refurbished Product (Do Not Use - Certiprime Option) |
