Keysight U9391F Comb Generator, 10 MHz to 50 GHz Small and Lightweight

Ask Lasest Price
Brand Name :	Keysight
Model Number :	U9391F
Certification :	ISO17025
Price :	Negotiable
Payment Terms :	T/T，Western Union
Supply Ability :	In Stock
Delivery Time :	1~3 Working Days

Add to Cart

Product Details
Company Profile

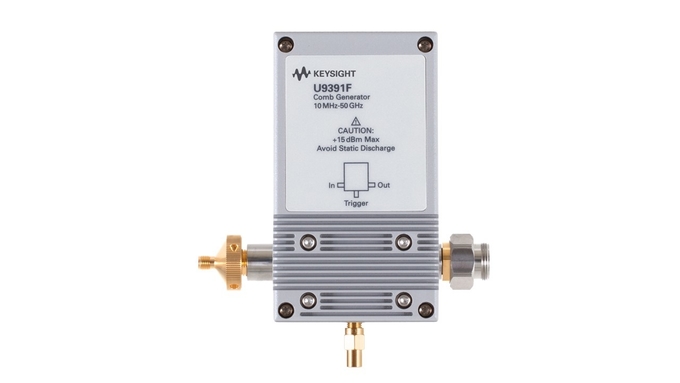

Keysight U9391F Comb Generator, 10 MHz to 50 GHz Small and Lightweight

HIGHLIGHTS of Keysight U9391F Comb Generator

The Keysight U9391C/F/G comb generator was designed as a phase reference standard to provide precision phase calibration for non-linear measurements using the PNA-X non-linear vector network analyzer (NVNA), referenced to the National Institute of Standards and Technology (NIST). Additionally, the comb generators can be used to calibrate PNA and PNA-X network analyzers for phase and delay measurements of frequency converters without requiring reference or calibration mixers.

Comb generators generate frequency harmonics at integer multiples of an RF input signal. Generally, comb generators available in the open market today are made with SRD diodes. The U9391C/F/G comb generator is based on the Keysight InP MMIC technology to ensure superior phase stability of the combs.

Specifications of Keysight U9391F Comb Generator

Output frequency:10 MHz to 50 GHz
Input frequency:10 MHz to 6 GHz
1, 2, 4, 8 or 16 divide ratio

Industry-1st phase calibration standard comb generator for precision nonlinear measurements

Keysight’s new comb generator offers a customer selectable USB controlled frequency divider which allows for broad range of input signal frequencies from 10 MHz to 50 GHz and small minimum tone spacing of 10 MHz. The input power and fundamental frequency have lower sensitivity than other comb generators. So you can calibrate the comb generator at a single input power level and frequency and then successfully apply the calibration across a wide range of input powers and fundamental frequencies.

Key features of the U9391C/F/G Comb Generator – Excellent amplitude and phase flatness enable it to be used as a precision calibration phase reference standard for the PNA, PNA-X, and NVNA. – NIST referenced phase calibration guarantees a reliable reference to international standards. – Embedded calibration data can be easily accessed via the plug-and-play USB interface. – The USB interface further facilitates frequency divider control and calibration data retrieval via the PNA-X. – Rugged 1.85 mm, 2.4 mm, and 3.5 mm bulk-head connectors guarantee high repeatability throughout multiple connects and disconnects. – The sine-to-square wave converter is provided as a standard accessory. – The hand grip (U9391G only) is designed for better gripping and as a heat insulator for user’s handling. – Combined with the Keysight Signal Optimizer software (K3101A) for wideband calibrations of signal analyzers and oscilloscopes.

Options Keysight U9391F Comb Generator

U9391F-FFM	Two 3.5 mm Connectors are Female and Output Connector is 2.4mm Male On Module
U9391F-FFF	Two 3.5 mm Connectors are Female and Output Connector is 2.4mm Female On Module
U9391F-A6J	ANSI Z540-1-1994 Calibration
U9391F-1A7	Calibration + Uncertainties + Guardbanding (Not Accredited)
R-51B-001-C	Return to Keysight Warranty
R-55A-001-2	KeysightCare Assured - Extend to 2 years (includes Return to Keysight Extended Warranty)
R-55A-001-3	KeysightCare Assured - Extend to 3 years (includes Return to Keysight Extended Warranty)
R-55A-001-5	KeysightCare Assured - Extend to 5 years (includes Return to Keysight Extended Warranty)
R-55C-001-2	KeysightCare Calibration - calibration of choice and technical support with priority TAT - 2 years
R-55C-001-3	KeysightCare Calibration - calibration of choice and technical support with priority TAT - 3 years
R-55C-001-5	KeysightCare Calibration - calibration of choice and technical support with priority TAT - 5 years
R-50C-011-3	Calibration Plan - Return to Keysight - 3 years
R-50C-011-5	Calibration Plan - Return to Keysight - 5 years
R-51B-001-C	Return to Keysight Warranty - 1 year
R-51B-001-3C	Extended Warranty - Return to Keysight - 3 years
R-51B-001-5C	Extended Warranty - Return to Keysight - 5 years

FAQ:

1. Can you ship the order to Canada or Australia?
Yes, we can. We send orders worldwide.

2. What delivery method do you use ? and delivery time?
We can ship by EMS, DHL, FedEx, UPS, and TNT with tracking numbers. The usual delivery time is 4-7 workdays.

3. What is your payment term?
100% T/T payment before shipment.

4. How can I ask any other question?
You can contact us online or leave us messages below.
